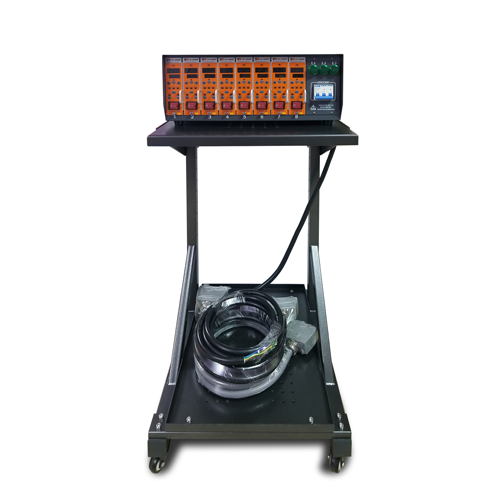

1.TP01 Hot Runner Controller Unitque Features
(1) Input Power Indicator---- Display the current input power to avoid the error input damage;
(2) Tool-free Quick Disassembly Screws---SUS304 material screws, not need tool to assemble it;
(3) Technical Grade Hinge Design----Humanize design to convenient service.
(4) Build-in Removable Dust-proof Screen-----Good radiating to prolong the service life.
2.TP01 Hot Runner Controller Card Specification
| TP01 1 Zones Hot Runner Controller Specification | |||
| Ambient Temp | 0℃~55℃ （32℉~131℉） | Temp Control | 45℃~535℃（77℉~900℉） |
| Relative Humidity | 10%-90% | Temp Test Precision | ±1% |
| Transmit Temp | -40℃~70℃ | Repeat Test Precision | ±0.1% |
| Supply Power | 110~240VAC 50/60HZ | Sensor Type | J Type or K Type |
| Temp Unit | ℃~℉ | Output Control Mode | FUZZY PIDD/PID |
| Max Load | 15A 3600W/220V or 1650W/110V | Work Mode | Auto/Manual/Standby |
3. TP01 Hot Runner Controller Main Function
3.1 Adapter FUZZY PIDD Control Technical
3.2 Automatic Ambient Temp Linear Compensation
3.3 Electric current And Output Ratio Display
3.4 Autol Manual Work Mode
3.5 Standby lnsulation Function
3.6 Overload Protect Function
3.7 Thermocouple Fault Detection
3.8 Heater Fault Detection
3.9 SCR Temp Detection
3.10 SCR Fault Detection
3.11 Max Current Limitation
3.12 Overload Protect Function
3.13 Softstart Time&Output Percentage Adjust
3.14 Supply Power Frequency Monitor
3.15 Industrial Grade Electronic Components
3.16 lnner Temperature Detection
3.17 Input Power lndicator To Detect Present Power Situation
3.18 Tool-free Quick Disassembly Design To Maintain
3.19 Build-in Removable Dust-proof Screen To Keep Good Radiating
3.20 Custom-made Service For Zones Quantity , Connection Way etc.
4. TP01 Hot Runner Controller Dimension , Weight And Package
5.FAQ
Q1: How many zones the TP01 can be supported?
A1: 1-12 zones is most common use of TP01 model. Over 12 zones, we suggest to use HY20 touch screen model.
Q2: What’s customized service can be offered?
First, OEM service;
Second, power method, connection method, connector type etc can be customized.
Q3: How about delivery time?
Within 10 pcs, the delivery time is around 5-7 work days; Within 30pcs, the deliver time is around 15-20 work days.
