Hot runner systems and sustainable production: solutions to reduce waste and energy consumption
2025-01-15

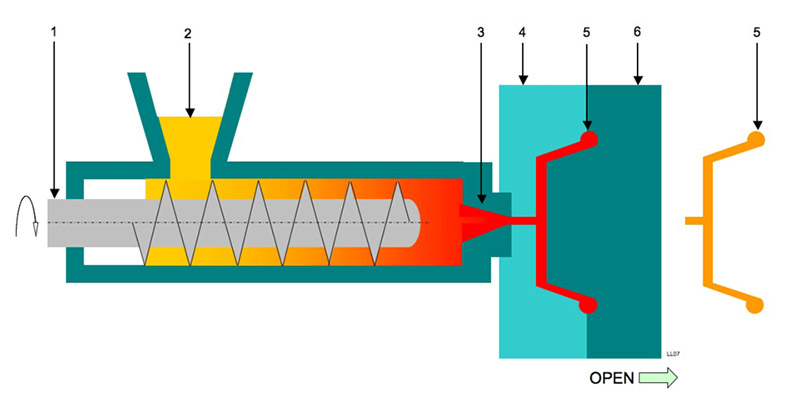

The hot runner system is a combination. It does not refer to a single product. It includes hot nozzles, runner plates, temperature controllers, manifolds, etc. These together form a hot runner system. As a common component of the injection mold system, it ensures that the plastics in the runners and gates remain molten by heating. Since heating rods and heating rings are set near or in the center of the runners, the entire runner from the nozzle outlet of the injection molding machine to the gate is in a high temperature state, so that the plastics in the runners remain molten. After stopping the machine, it is generally not necessary to open the runner to remove the condensate. When restarting the machine, it is only necessary to heat the runner to the required temperature. Therefore, the hot runner process is sometimes called a hot manifold system, or runnerless molding.
Composition of hot runner system

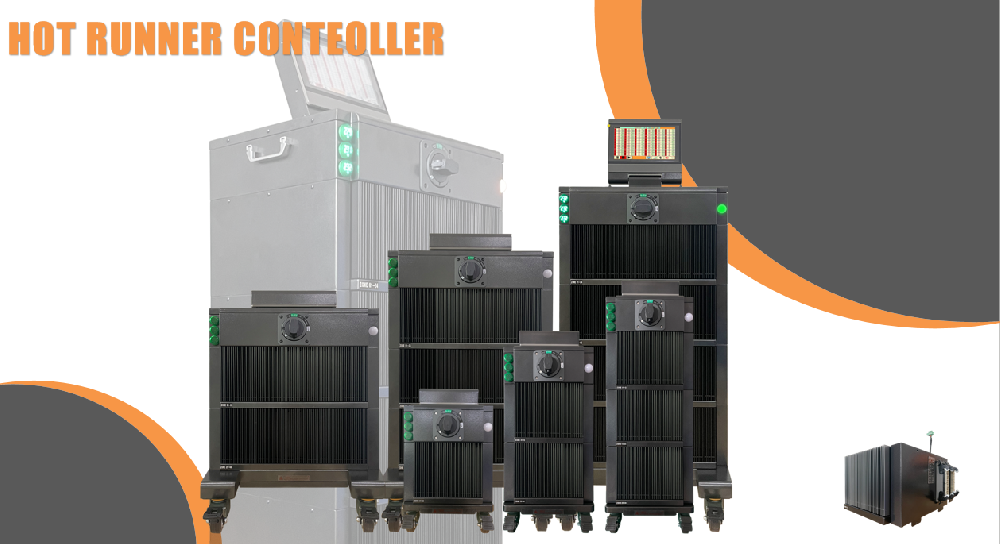

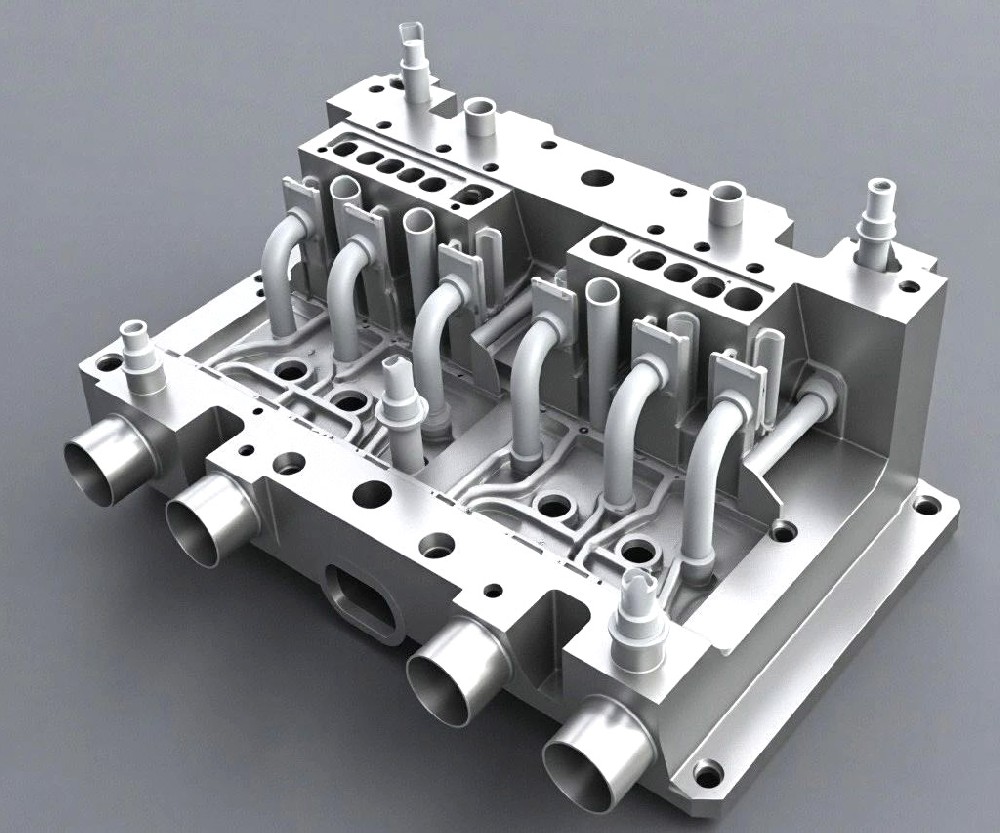

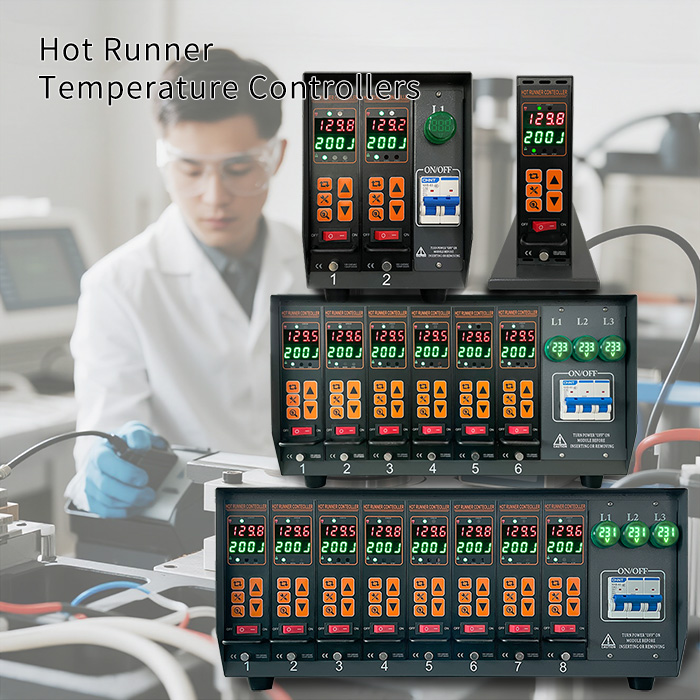

Although there are many hot runner manufacturers and a variety of hot runner product lines in the world, a typical hot runner system is composed of the following parts: hot runner plate, nozzle, temperature controller, and auxiliary parts.
A successful hot runner mold application project requires multiple links to ensure that there are two most important technical factors: one is the control of plastic temperature; the other is the control of plastic flow characteristics.

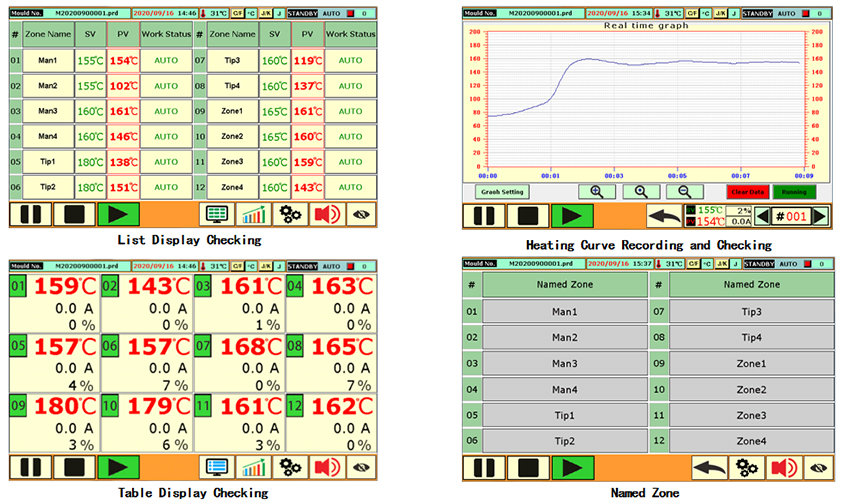

Plastic temperature control Plastic temperature control is extremely important in hot runner mold applications. Many processing and product quality problems that occur during the production process are directly caused by poor temperature control of the hot runner system. For example, when using a torpedo hot nozzle gate for injection molding, the problem of the valve needle being difficult to completely close during valve hot nozzle molding, and the problem of inconsistent filling time and quality of parts in multi-cavity molds. If possible, try to choose a hot runner system with multi-zone segmented temperature control to increase flexibility and adaptability.
Control of plastic flow The plastic must flow in a balanced manner in the hot runner system. The gates must be opened at the same time so that the plastic can fill each cavity synchronously. For parts with a large difference in weight, the runner size design must be balanced. Otherwise, some parts will not be filled with enough pressure, while others will be filled with too much pressure, the flash will be too large and the quality will be poor. The hot runner runner size design must be reasonable. If the size is too small, the mold filling pressure loss will be too large. If the size is too large, the hot runner volume will be too large, and the plastic will stay in the hot runner system for too long, which will damage the material properties and cause the parts to fail to meet the use requirements after molding.
The hot runner system plays a crucial role in sustainable production in the plastic injection molding industry, particularly in reducing waste and energy consumption. Here are some key ways the hot runner system contributes to these goals:
1. Waste Reduction
The hot runner system minimizes waste by maintaining the continuous flow of plastic within the mold, eliminating the need to discard excess material, as is required in traditional cold runner systems. In cold runner systems, excess plastic is discarded after the mold cools, but with the hot runner system, plastic is kept molten and can be reused in subsequent cycles. This significantly reduces waste and increases material utilization.
2. Optimized Energy Efficiency
Hot runner systems reduce energy consumption by precisely controlling temperature and flow rates. Traditional injection molding processes often waste a lot of energy in maintaining the temperature of cold runners and the surrounding environment. In contrast, hot runner systems offer more precise heating control, reducing unnecessary energy loss. Additionally, hot runner systems typically have better insulation, which helps minimize heat loss, thus optimizing overall energy efficiency.
3. Shorter Production Cycles
The rapid heating and cooling capabilities of the hot runner system result in shorter injection cycles. Shorter cycles allow for more products to be produced in the same amount of time, indirectly reducing energy and resource consumption per unit produced, thus improving overall production efficiency.
4. Reduced Emissions
By reducing waste and optimizing the production process, hot runner systems help lower unnecessary emissions. During plastic production, waste gases are often generated due to excessive heating or the creation of waste material. The hot runner system minimizes these potential sources of emissions by offering more precise control over heating and flow, leading to fewer emissions overall.
5. Material Compatibility
Hot runner systems are more compatible with a variety of plastic materials, including recycled materials. This allows manufacturers to use more recycled content, further supporting sustainability goals. Traditional cold runner systems may negatively affect the quality of certain recycled plastics, but the hot runner system ensures smooth material flow, resulting in high-quality end products.
6. Long-Term Sustainability Benefits
Adopting hot runner systems not only reduces waste and energy consumption in the short term but also provides long-term economic benefits. With less material waste, production costs are reduced. More efficient energy use also contributes to a lower overall energy consumption over time, helping to lower the carbon footprint of the business in the long run.
In summary, the hot runner system is a key tool for achieving sustainable production. By reducing waste, optimizing energy usage, and improving production efficiency, it offers a more environmentally friendly and cost-effective manufacturing solution. The widespread use of this technology is driving the industry toward greener and more efficient practices.
