HY20 48 Zone Touch Screen Hot Runner Controller
HY20 48 zone touch screen hot runner controller for centralized multi-zone temperature control, data management and injection molding production.
Touch Screen Hot Runner Controllers
HY20 48 Zone Touch Screen Hot Runner Controller
HY20M Intelligent Touch Screen Series uses a new external radiating design, reasonable circuit layout and free-tool maintenance structure for stable multi-zone hot runner temperature control. The module uses high-pressure cast aluminum alloy as the external radiating part, with cathode black oxidation treatment to improve heat absorption, heat dissipation efficiency, stability and reliability.
Key Features
- New external radiating design with high-pressure cast aluminum alloy radiating parts.
- Cathode black oxidation surface treatment improves heat absorption and heat dissipation efficiency.
- High-end black PCB printing helps reduce insulation deterioration and corrosion caused by dust and moisture.
- Strong current and weak current are laid out separately for better anti-interference ability and stable operation.
- Tool-free thumb screws and plug-in module design allow maintenance without special tools.

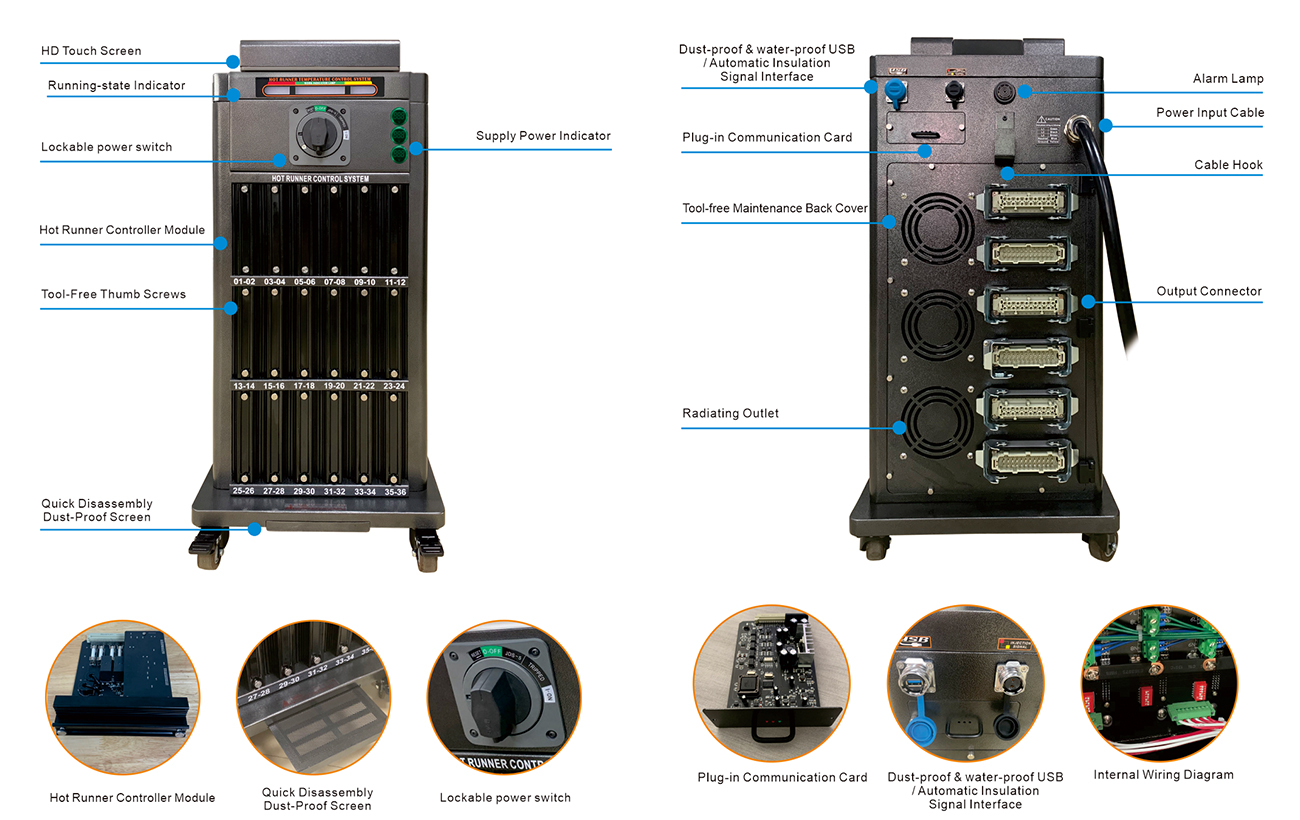

Product Packaging And Detail Reference

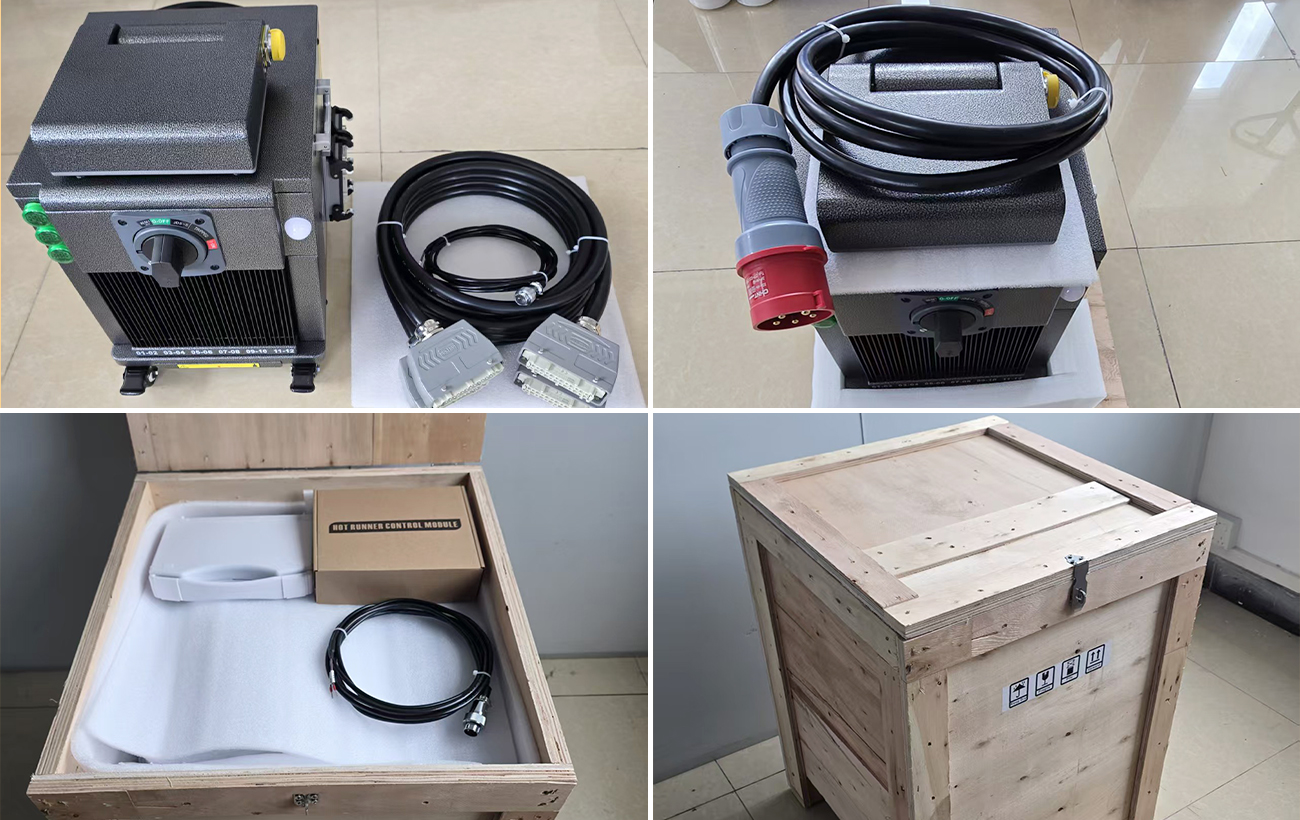

Common reference images are shown separately so product photos, module details and packing views are easier to compare.
Product Overview
Built For Stable Hot Runner Production
The HY20 48 zone touch screen hot runner controller is designed for injection molding projects where operators need centralized control, clearer alarm visibility and a more intuitive HMI than a traditional button-based controller. For medium and large multi-zone molds, checking settings one card at a time can slow down mold trials and production adjustment. HY20 brings the zones into a graphical interface so operators can view status, set temperature and review abnormal conditions more directly.
The HY20 series uses a human-machine interface with HD touch screen operation, temperature record storage, mold data import/export through USB and optional LAN network control. This helps production teams manage mold settings, review heating records and reduce repeated manual setup when molds are changed or restarted. The built-in work signal lamp gives a direct visual indication: green for normal operation, red for alarm or shutdown, and yellow for standby or soft-start heating.
The cabinet structure is built around long-term workshop use. The external radiating design uses high-pressure cast aluminum alloy radiating parts with cathode black oxidation surface treatment. Strong and weak current circuits are separated inside the cabinet, and the plug-in module design with tool-free thumb screws helps technicians maintain the controller without complex disassembly. A removable dust-proof screen helps protect the radiating area in dusty injection molding environments.
For this 48 zone model, the reference dimension is 370 x 310 x 1090 mm and reference weight is 64 kg. Final configuration should be confirmed according to mold zone count, voltage, thermocouple type, connector standard, cable length and whether optional LAN remote control is required. HY20 is a better fit when the buyer values operating visibility, data management and faster multi-zone checking.
Quick Information
- ModelHY20M
- Zone Count48 Zone
- SeriesHY20 Touch Screen Series
- Dimensions370 x 310 x 1090 mm
- Weight64 kg
Main Features
Designed for temperature stability, quicker maintenance and clearer fault diagnosis during injection molding production.
Touch Screen Central Control
Operators can view and adjust multiple zones from one graphical HMI, which is useful for large molds and frequent setting checks.
Temperature Data Import And Export
Mold temperature settings can be saved or imported by USB, helping production teams manage repeated mold setups.
Temperature Record Storage
Heating records can be stored and reviewed, giving technicians useful information when analyzing abnormal temperature behavior.
Optional LAN Network Control

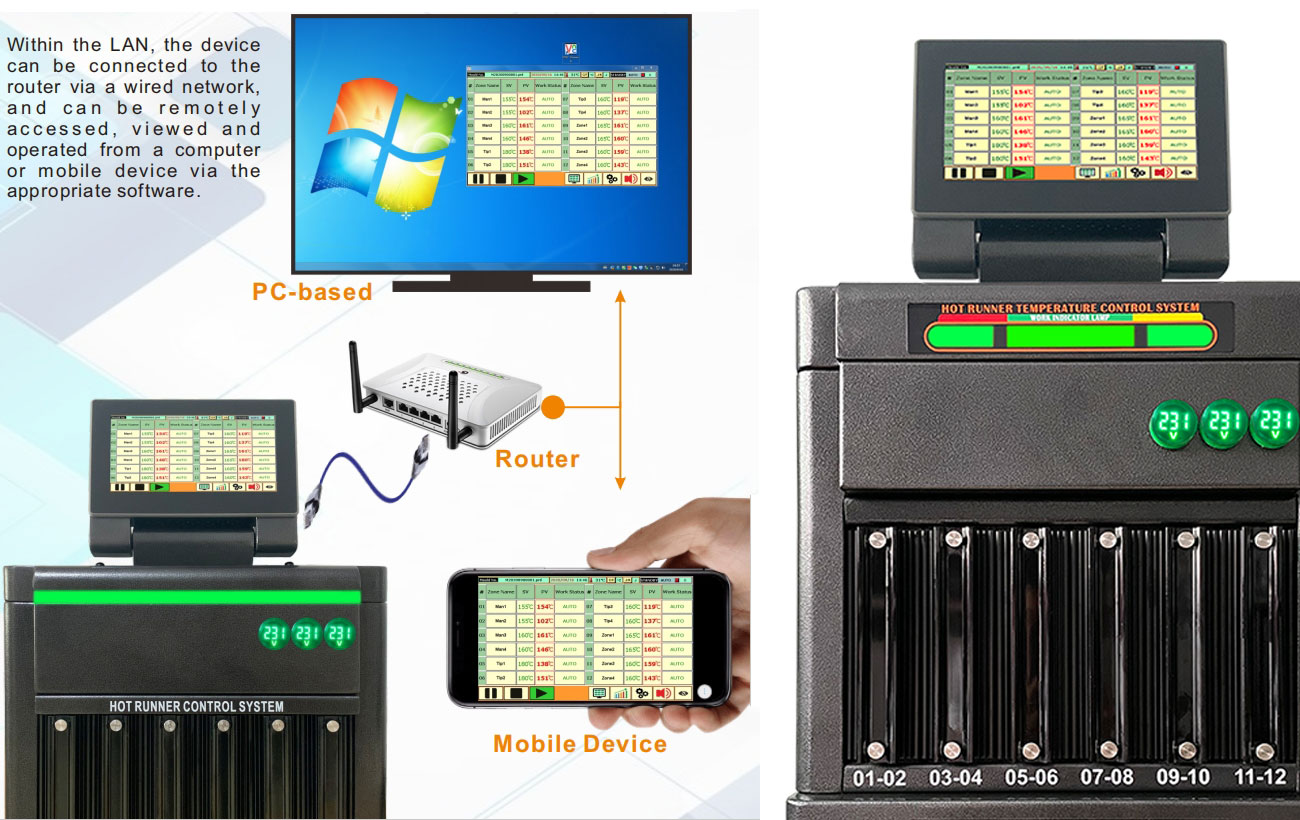

The controller can support local area network access for remote viewing and operation when the project requires it.
Work Signal Indicator
Green, red and yellow signal indications help operators understand normal, alarm, shutdown, standby and soft-start states at a glance.
External Radiating Design
High-pressure cast aluminum alloy radiating parts and larger external heat dissipation support stable controller operation.
Separated Circuit Layout
Strong current and weak current areas are separated to improve anti-interference performance and reduce electrical instability.
Tool-Free Maintenance
Tool-free thumb screws, plug-in modules and removable dust-proof screens reduce maintenance time in workshop use.
Technical Specification
Key technical points are summarized by application, so mold matching, electrical confirmation and quotation review are easier to read.
Temperature Control
For a 48 Zone touch screen controller, these points describe how temperature data, zone control and mold settings are managed from the HMI.
- Temperature control precision: +/- 1%
- Repeat temperature control precision: +/- 0.1%
- Temperature stable precision: +/- 1%
- Thermocouple type: J type or K type
- Temperature unit: C / F
Electrical Data
These electrical details help confirm whether the controller matches the site power supply, heater load and mold wiring before production starts.
- Screen / HMI: HD touch screen graphical human-machine interface
- Single zone output power: 3600W max at 240VAC
- Single zone output current: 15A max at 240VAC
- Input power: Three phases five wires 380VAC or three phases four wires 220VAC
- Frequency: 50-60Hz
Working Environment
These conditions show the recommended workshop environment for stable control, safer operation and longer service life.
- Relative humidity: 10%-90%RH, non-corrosive environment
Connection & Cable
Cable and connector details are used to match the controller with the mold harness, reduce wiring mistakes and shorten installation time.
- Connector type: HE-016 / HE-024 / H-048 / DME Standard
- Cable standard plug: Metal PG or M Metric
- Cable type: Standard cable / J type temperature compensation cable / outer covering cable
- Connection cable length: Standard 4m, custom length available
Dimension & Package
Size, weight and packing information helps buyers check cabinet placement, shipping method and installation space in advance.
- Dimension: 370 x 310 x 1090 mm
- Net weight: 64 kg
Configuration & Options
Optional configuration items can be adjusted before production, so the controller arrives closer to the actual mold and factory workflow.
- Network option: LAN network control optional
- Certification: CE
General Specification
These specifications summarize the practical details that should be confirmed before quotation and production.
- Model: HY20 48 Zone Touch Screen Hot Runner Controller
- Series: HY20 intelligent touch screen series
- Zone count: 48 zones
- Data function: USB temperature data import and export, temperature record storage and viewing
Standard Configuration
The final configuration is confirmed according to zone count, connector type, voltage and cable requirement.
48 Zone HY20 cabinet configured for the requested mold zones.
Modular control cards with separated strong and weak current layout.
Power input cable prepared according to 220VAC or 380VAC site requirement.
Standard 4m cable, connector type confirmed before production.
Temperature data import and export support for mold setting management.
Applications
TOPOWER hot runner controllers are used in automotive plastic parts, bottle caps, medical plastic products, packaging and toy production where stable molding temperature supports consistent output.
Automotive
Caps
Medical
Packaging
Toys
Before Quotation, Confirm These Details
These items help TOPOWER check compatibility and prepare a useful quotation instead of a vague price.
Mold zone count and future expansion need
Site voltage: 220VAC or 380VAC
Thermocouple type: J type or K type
Connector standard and cable length
Whether USB data export or LAN remote control is required
FAQ
When should a buyer choose HY20 instead of TP01?
HY20 is preferred when centralized touch screen operation, temperature records, USB data handling or optional LAN control are important.
Does HY20 support multiple languages?
The HY20 system supports language customization. Chinese and English are standard references from the product material.
What information is needed for quotation?
Confirm zone count, voltage, thermocouple type, connector standard, cable length, cabinet requirement and whether LAN control is required.
Can the controller store mold temperature data?
Yes. HY20 supports temperature data import/export and temperature record storage for easier mold setting management.
