Touch Screen Hot Runner Controllers
HY20 60 Zone Touch Screen Hot Runner Controller
HY20 60 zone touch screen hot runner controller for centralized multi-zone temperature control in injection molding.
Product Overview
Product Details
The HY20 60 Zone Touch Screen Hot Runner Controller is an intelligent touch screen hot runner controller for larger multi-zone molds. It supports centralized operation, organized zone monitoring and practical project configuration.
Quick Information
- ModelHY20M
- Zone Count60 Zone
- SeriesHY20 Touch Screen Series
- DimensionsProject configuration, confirm before quote
- WeightConfirm before quote
Main Features
Key points buyers usually check before quotation.

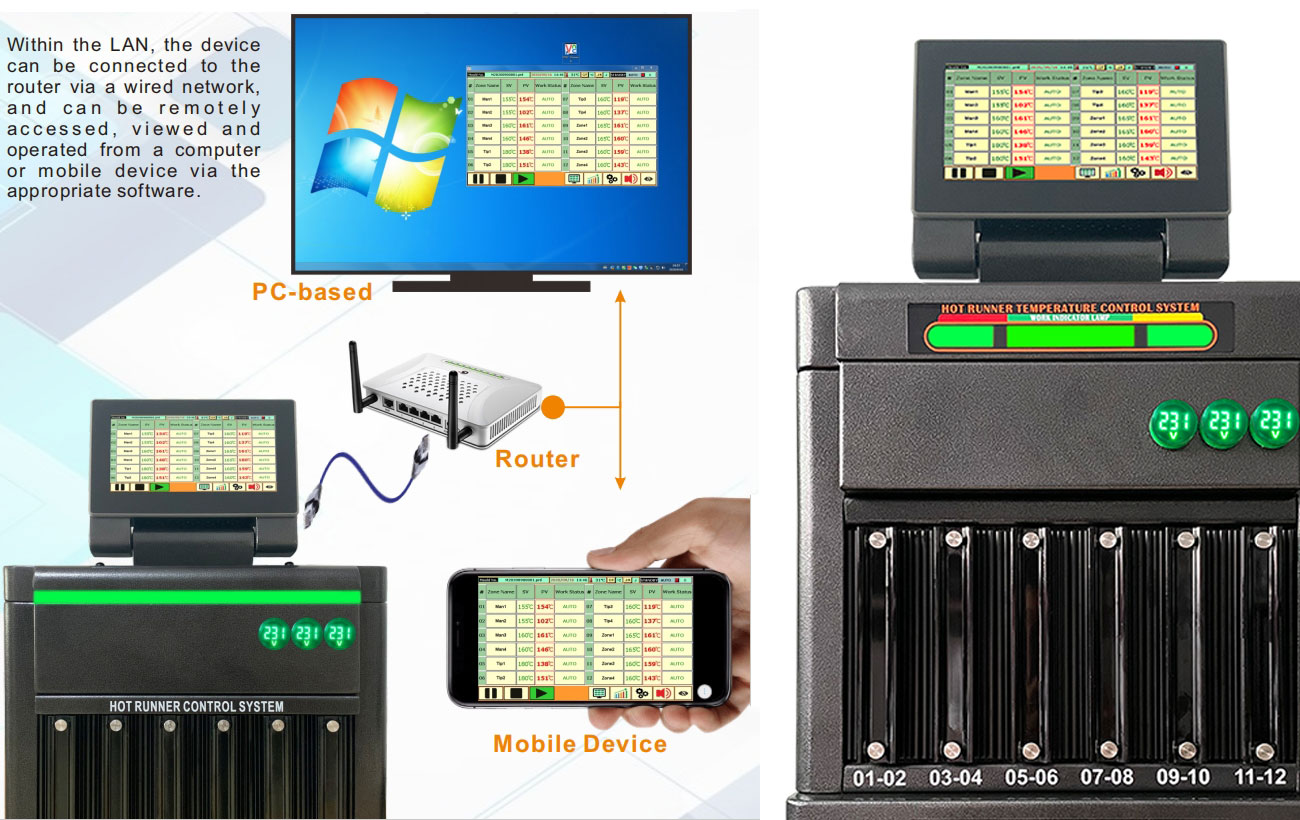

Touch Screen Central Control
Operators can check and adjust multiple zones from one HMI.
External Radiating Design
High-pressure cast aluminum alloy radiating parts improve heat dissipation.
Power Protection Range
Undervoltage and overvoltage protection supports safer use in production environments.
Specification
Technical information for product matching and quotation.
| Model | HY20 60 Zone Touch Screen Hot Runner Controller |
|---|---|
| Series | HY20M intelligent touch screen series |
| Zone count | 60 zones |
| Dimension / Weight | Project configuration, confirm before quote; Confirm before quote |
| Thermocouple type | J type or K type |
| Control mode | PID / PIDD digital control |
| Sampling frequency | 10Hz (100ms) |
| Temperature control module work power | 100-240VAC |
| Single zone output power | 3600W Max (240VAC) |
| Single zone output current | 15A Max (240VAC) |
| Supply power protection | Undervoltage 175VAC, overvoltage 275VAC |

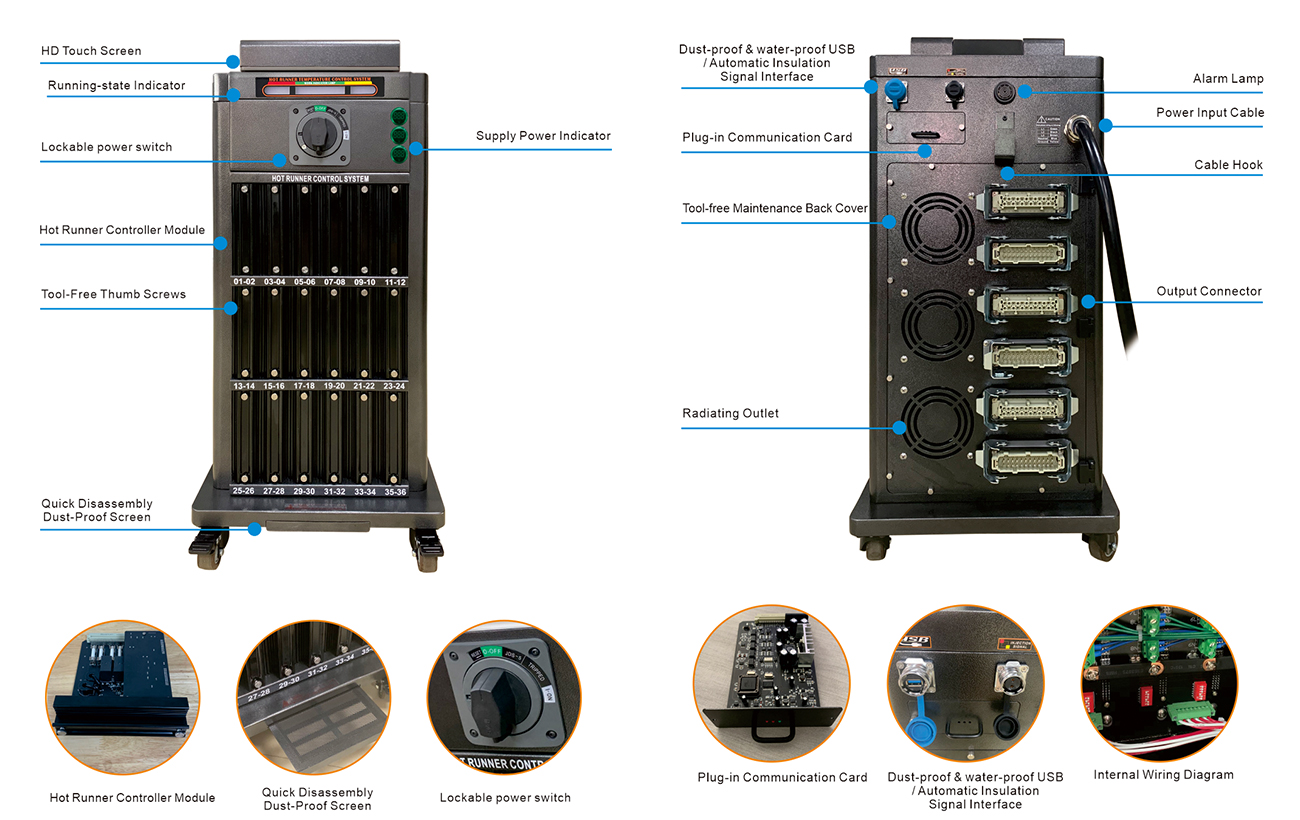

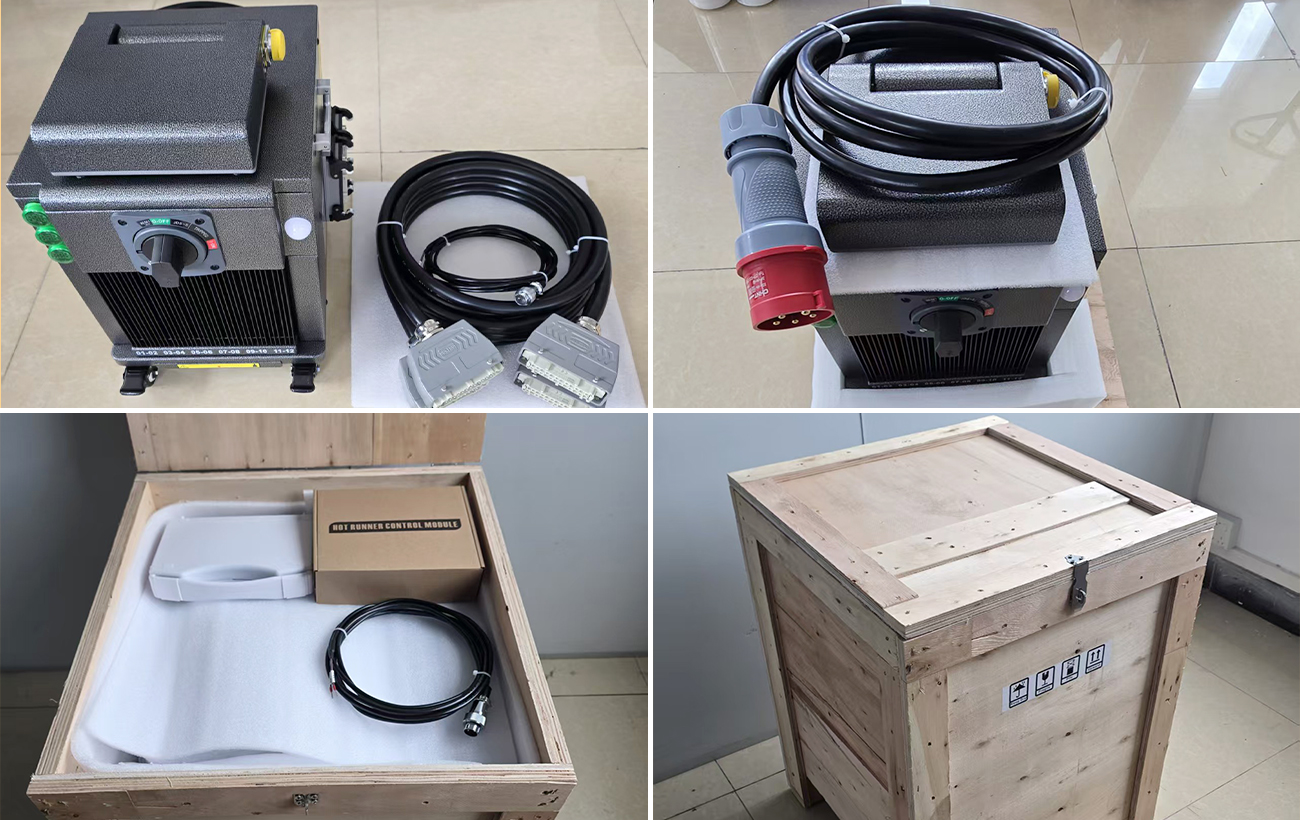

Product Images
Product, detail and packaging images for buyer review.
Applications
Large Multi-Zone Molds
Suitable for molds that need centralized operation and alarm visibility.
Injection Molding Production
Supports production lines where faster zone checking is important.
Project-Based Configuration
Voltage, wiring method and connector plans can be confirmed before quotation.
FAQ
Why choose touch screen control?
Touch screen operation gives operators centralized settings, clearer alarms and faster zone checking.
What should be confirmed before quotation?
Confirm voltage, wiring method, thermocouple type, cabinet requirement and connector/cable plan.
