TP01 12 Zone Modular Hot Runner Temperature Controller

TP01 12 zone modular hot runner temperature controller for injection molding, mold trials and hot runner system matching.

Get A Quote Back To Products

Product Overview

Product Details

The TP01 12 Zone Modular Hot Runner Temperature Controller is built for 12-zone hot runner temperature control in injection molding. It uses TP01 modular card structure, FUZZY PID/PIDD control, current and output ratio display, auto/manual/standby work modes and practical protection functions.

Quick Information

ModelTP01
Zone Count12 Zone
SeriesTP01 Modular Series

Main Features

Key points buyers usually check before quotation.

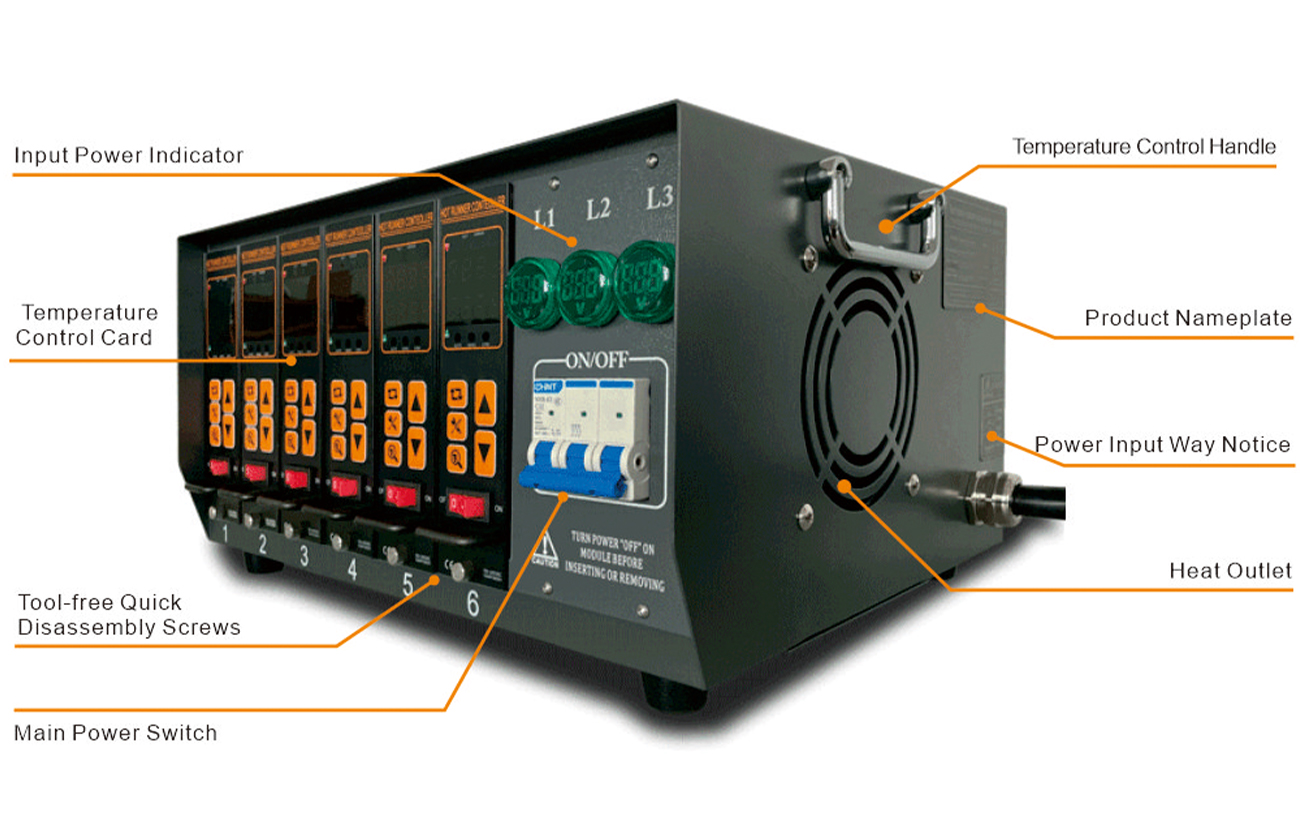

Input Power Indicator

Displays current input power and helps reduce damage caused by wrong input connection.

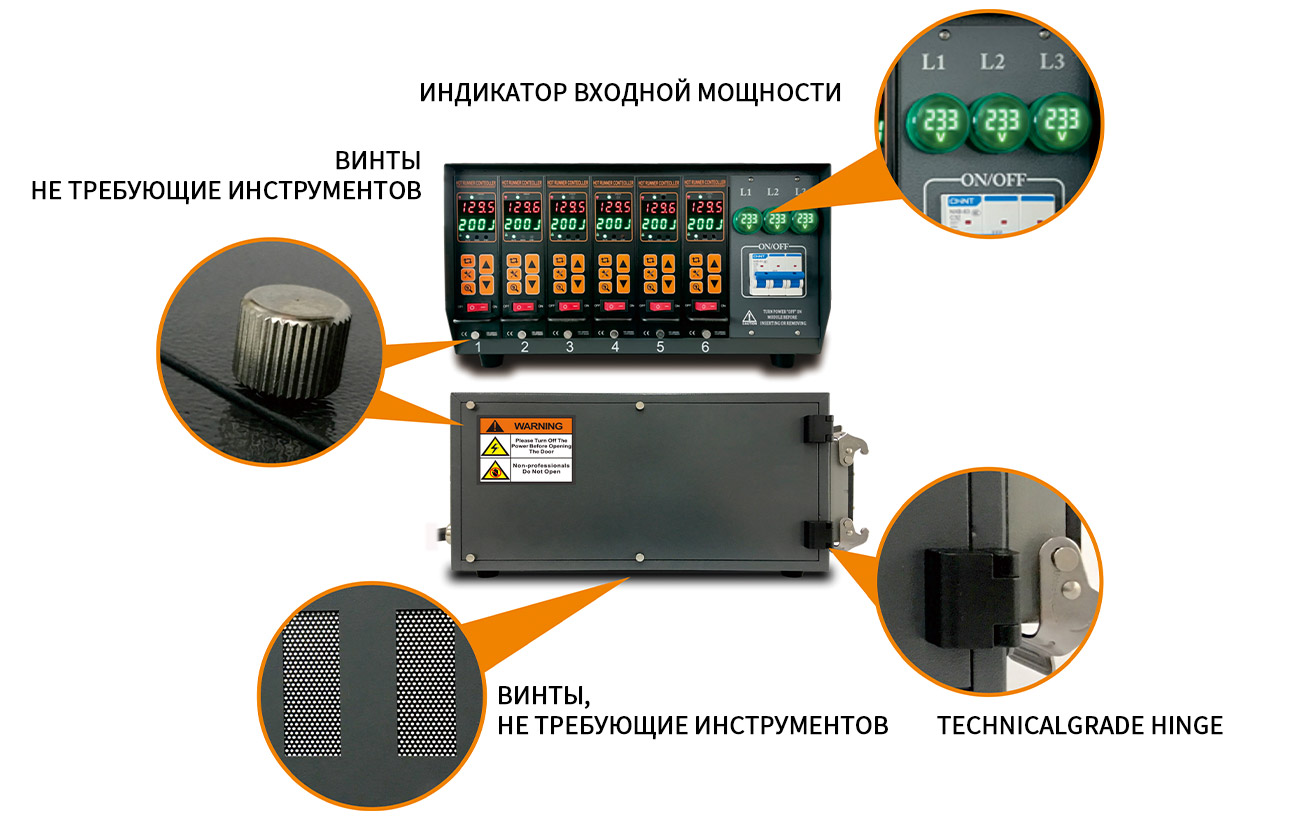

Tool-Free Quick Disassembly

Service-friendly hardware makes maintenance easier on site.

FUZZY PID Control

FUZZY PID/PIDD control, ambient compensation and current/output display support stable production.

Specification

Technical information for product matching and quotation.

Model	TP01 12 Zone Modular Hot Runner Temperature Controller
Zone count	12 zone
Series	TP01 modular hot runner controller
Temperature control precision	+/-1%
Repeat temperature control precision	+/-0.1%
Thermocouple type	J type or K type
Control mode	PID / PIDD digital control
Sampling frequency	10Hz (100ms)
Work mode	Auto / Manual / Standby
Input power	Three phases five wires (380VAC) / Three phases four wires (220VAC)
Temperature control module work power	100-240VAC
Single zone output power	3600W Max (240VAC)
Single zone output current	15A Max (240VAC)
