The Advantages of Hot Runner Systems in Injection Molding

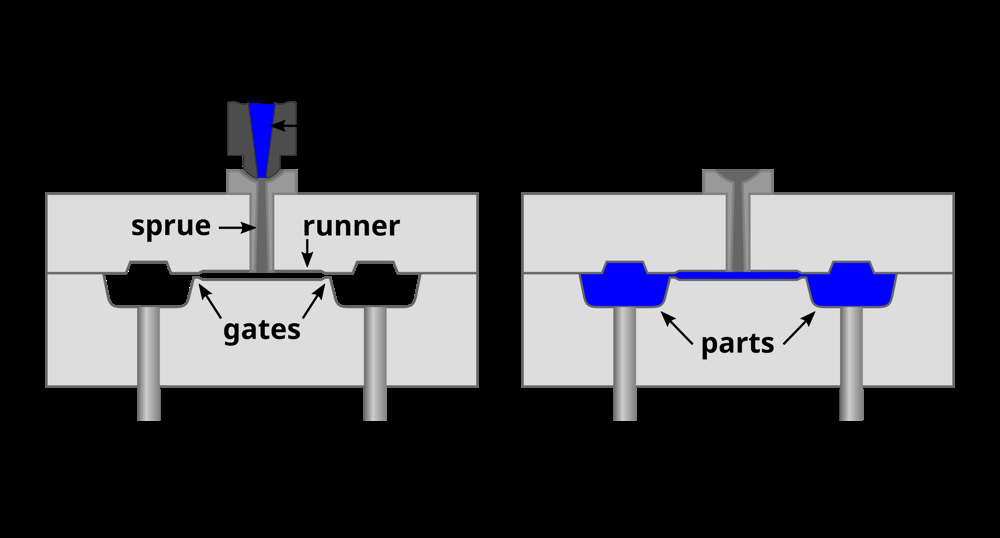

Hot runner systems are a specialized core technology in injection molds, designed to deliver molten plastic directly into mold cavities. Unlike cold runner systems, which rely on solidified plastic channels for material delivery, hot runner systems keep the plastic in a molten state throughout the molding process. This is achieved through the precise design of heated manifolds and nozzles, which maintain the plastic at optimal processing temperatures.

Since their introduction, hot runner systems have significantly benefited the injection molding industry. Today, they have become the mainstream replacement for cold runner systems due to their ability to greatly enhance production efficiency. Here are the main ways hot runner systems improve injection molding efficiency:

1. Faster Cycle Times

Hot runner systems eliminate the need for cooling and solidifying the runner, meaning cooling time is based solely on the part itself rather than the combined part and runner. This dramatically shortens cooling times, resulting in reduced production cycles. Faster cycle times directly translate to increased part production within a given timeframe, enhancing overall efficiency. Additionally, hot runner systems avoid the delays associated with cooling and removing runners, further accelerating the production process.

2. Improved Part Consistency and Quality

Hot runner systems enable precise control over the flow of molten plastic, reducing defects and ensuring part consistency. Stable melt flow and uniform temperature distribution ensure cavities are completely filled, achieving high-precision parts. Moreover, consistent temperatures throughout the molding process contribute to uniform part characteristics and appearance, significantly enhancing product quality.

3. Reduced Material Waste

One of the most notable advantages of hot runner systems is the reduction of material waste. In cold runner systems, runner materials solidify into scrap, requiring recycling or disposal. Hot runner systems, by maintaining plastic in a molten state and delivering it directly into mold cavities, eliminate runner waste. This not only lowers material costs but also provides environmental benefits by reducing plastic waste.

4. Enhanced Design Flexibility

Hot runner systems allow for flexible gate placement at multiple points on a part, which is critical for optimizing aesthetics and filling performance. Whether using edge gates or hot tip gates, designers can select the best gate location to enhance part quality. Furthermore, this flexibility extends to mold design, simplifying cooling paths and cavity orientations while optimizing the overall design.

5. Extended Service Life

The heated nozzles in hot runner systems feature standardized, modular designs and offer various interchangeable nozzle heads for easy maintenance. This design ensures uniform heating temperatures and significantly extends the system’s lifespan. Once installed, maintenance and replacement costs are relatively low, offering excellent long-term value.

Conclusion

Hot runner systems enhance injection molding efficiency in multiple ways: from shorter cycle times and reduced material waste to improved part quality and design flexibility. Their stability and efficiency make the production process more controllable, delivering substantial cost savings and sustainability benefits to the injection molding industry.

Whether your goal is to reduce costs, increase productivity, or adopt environmentally sustainable practices, transitioning from cold runner to hot runner systems is a wise decision.
