Explore the Role and Benefits of Hot Runner Controllers

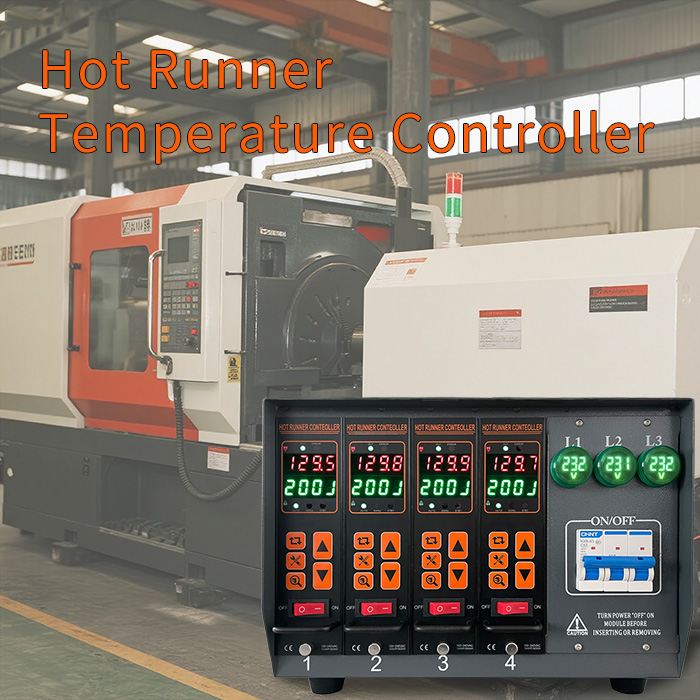

What is a Hot Runner Temperature Controller?

A hot runner temperature controller is an electronic device specifically designed for use in injection molds equipped with hot runner systems. It precisely controls the temperature of each heating zone to ensure that the molten plastic remains at a consistent temperature during flow. This prevents issues such as material degradation, product defects, and color inconsistency.

How does the Hot Runner Temperature Controller Work in a Hot Runner System?

The temperature controller monitors and adjusts the temperature of each heating point in real time, enabling efficient, stable, and precise molding.

Temperature Sensing

Each heating point in the hot runner system is equipped with a thermocouple that detects the current temperature and sends an electrical signal back to the controller.
Common thermocouple types include K-type and J-type.

Data Processing & Evaluation

The controller's internal microprocessor compares the actual temperature from the thermocouple with the target temperature to detect any deviation.

Output Adjustment Signal

If the temperature is too low, the controller sends a signal through a solid-state relay (SSR) to activate the heater and raise the temperature.
If the temperature is too high, it reduces or cuts off power to prevent overheating.

This process forms a closed-loop control system, typically using PID or PIDD algorithms to ensure fast, stable response and minimal temperature fluctuation.

Continuous Monitoring & Correction

The hot runner controller continuously collects temperature data, processes it, and adjusts output in real time to maintain each heating point within its optimal temperature range.

Key Advantages of Using Topower Hot Runner Temperature Controllers

Less Waste + Higher Efficiency + Better Product Quality + Longer Equipment Life

Ensure Stable Product Quality

Accurate Temperature Control: Maintains the temperature of each heating point (such as nozzles and manifolds) within a narrow margin (typically ±1°C), preventing overheating or underheating.

Defect Prevention: Effectively avoids injection issues such as material degradation, burn marks, short shots, etc.

Improved Surface Consistency: Ideal for high-precision parts requiring excellent appearance, such as automotive interiors and electronic housings.

Boost Production Efficiency

Reduced Preheating & Cooling Time: Precise heating shortens wait times and improves molding cycles.

Less Manual Adjustment: Once the system stabilizes, no frequent temperature tuning is needed—saving labor and time.

Quick Recovery from Abnormalities: In case of errors, fast diagnostics and restart reduce downtime.

Extend Equipment Lifespan

Smart Protection System: Features include over-temperature protection, thermocouple break detection, short circuit alarms, automatic power cut-off, etc., protecting heaters and circuits.

Avoid Overload: Balanced heating output reduces stress on heating elements.

Lower Failure Rate: Stable temperature control prevents mold damage and hot runner blockage due to fluctuations.

Save Operational Costs

Minimize Material Waste: Stable melt flow reduces the scrap rate.

Energy Efficient: Advanced PID/PIDD control avoids unnecessary heating, reducing power consumption.

Longer Component Lifespan: Extended durability of heaters, thermocouples, and other components lowers maintenance costs.

Wide Range of Applications

Compatible with mold systems across various industries, including:Automotive injection parts、Medical consumables、Precision electronics、Home appliances and packaging products

Whether you are working with large-flow manifolds or small-tip nozzles, simple molds or complex designs, Topower offers the right temperature control solution.

FAQ

What is a hot runner temperature controller?

It’s a device that precisely controls the temperature of heating zones in hot runner injection molds.

What are the benefits of using a hot runner controller?
It reduces defects, saves energy, boosts efficiency, and extends equipment lifespan.

What industries use hot runner controllers?
Automotive, medical, electronics, packaging, and home appliances industries.
