In the fast-paced world of industrial manufacturing, maintaining precise and consistent temperature control is absolutely critical for product quality, process stability, and operational efficiency.
A ceramic heater band—often referred to as a ceramic-insulated band heater—is a robust, highly efficient thermal device specifically designed to wrap around cylindrical components like barrels, pipes, and nozzles. Unlike standard contact-based heaters that rely purely on direct physical conduction, ceramic heaters utilize a combination of conduction and radiant heat transfer, making them uniquely capable of reaching extreme temperatures while providing uniform thermal distribution across uneven surfaces.
The primary problem that these specialized ceramic band heaters solve is the energy inefficiency and temperature limitation associated with traditional heating methods.
In high-temperature polymer processing, standard heaters often lose a significant amount of heat to the surrounding environment and struggle to maintain the intense, sustained heat required for advanced resins.
By integrating heavy-duty ceramic insulation, these heaters trap the thermal energy internally, directing it almost entirely into the process cylinder rather than the ambient air.
Key Takeaways
High Temperature Capability: Capable of achieving internal temperatures up to 1400°F (760°C), making them ideal for processing high-temperature engineered plastics and resins.
Energy Efficiency: Built-in ceramic fiber insulation dramatically reduces power consumption by 25 to 30 percent, lowering overall operational costs.
Operational Safety: The advanced thermal management design ensures that the external outer sheath runs significantly cooler than the internal heating surface, enhancing workplace safety.
Industry Standard: They are overwhelmingly the preferred choice in plastics processing applications, including extrusion, injection molding, and blow molding equipment.
Ultimately, integrating a well-designed ceramic heater into your production line translates to fewer heater replacements, tighter process control, lower energy bills, and a safer working environment for your operators. Whether you are upgrading an old machine or designing a new thermal system, understanding the baseline benefits of ceramic technology is the first step toward optimization.
How Ceramic Band Heaters Work (Construction & Key Specs)

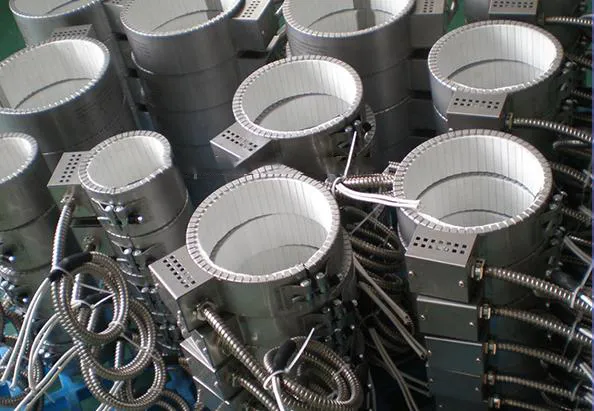

To fully appreciate the performance of modern industrial heaters, one must understand their intricate internal construction. The underlying mechanism of a ceramic band heater is surprisingly elegant, yet engineered for punishing industrial environments. The core heating element consists of a helically wound nickel-chrome resistance wire. This high-grade wire is precisely strung through a series of specially designed, interlocking steatite ceramic bricks. These ceramic components form a flexible, articulated heating mat that can conform to the shape of the cylinder it surrounds.
Unlike conventional mica heaters that depend entirely on tight physical contact for conduction, the ceramic heater mat transmits thermal energy through a powerful combination of conduction and radiation. Because the inner surface is designed to radiate heat directly onto the barrel, these units do not require extreme clamping forces, which often cause premature failure in other heater types. The robust interlocking ceramic structure also provides exceptional dielectric strength, preventing electrical shorts even at extremely high voltages and temperatures.

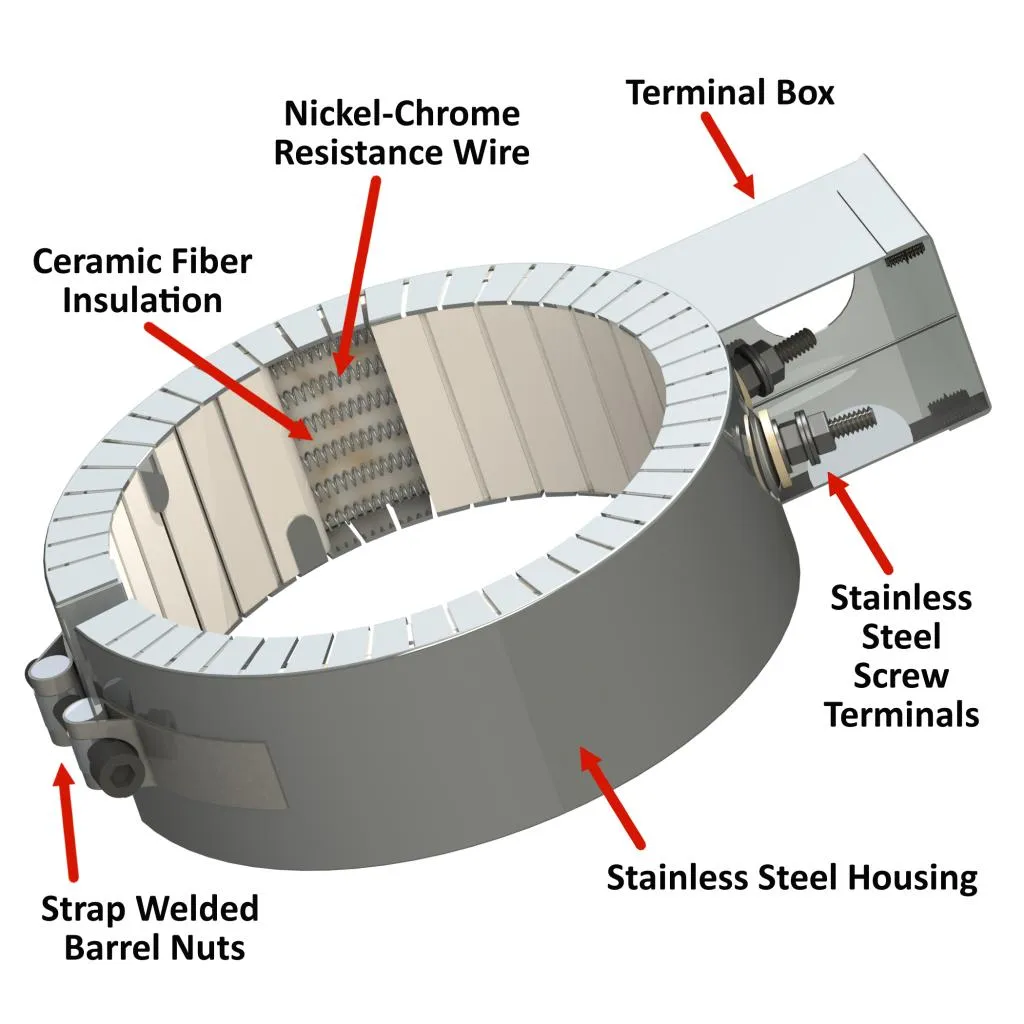

Surrounding this ceramic mat is a thick layer of ceramic fiber insulation—typically 1/4 inch (6 mm) thick, though double-insulated versions up to 1/2 inch (13 mm) are available for maximum thermal retention. This built-in thermal barrier is the secret to the heater's energy efficiency. According to technical specifications from industry leaders like Tempco and OMEGA Engineering, this insulation blanket reduces power consumption by an impressive 25 to 30 percent. Finally, the entire assembly is encased in a durable stainless steel housing with serrated edges, providing structural integrity while maintaining flexibility.
| Specification Parameter | Standard Performance Rating |
| Maximum Internal Temperature | Up to 1400°F (760°C) |
| Nominal Watt Density | 20 to 45 Watt/in² (3 to 7 Watt/cm²) |
| Maximum Voltage | Up to 480 VAC per termination |
| External Surface Temperature | Significantly cooler (Approx. 400°F / 204°C) |
This sophisticated combination of radiant heating, heavy-duty electrical components, and advanced thermal insulation makes the ceramic band heater an indispensable tool for operations requiring intense, stable, and cost-effective heat delivery.
Typical Applications (Where Ceramic Bands Are Used)
Ceramic band heaters are incredibly versatile and have become the gold standard across numerous heavy-duty industrial sectors. According to the IQS Directory on industrial heating devices, these robust components are deployed wherever cylindrical vessels, pipes, or barrels require consistent, high-temperature thermal input. Their unique ability to provide both conductive and radiant heat makes them highly adaptable to various surface conditions and operational demands.
Plastics Processing

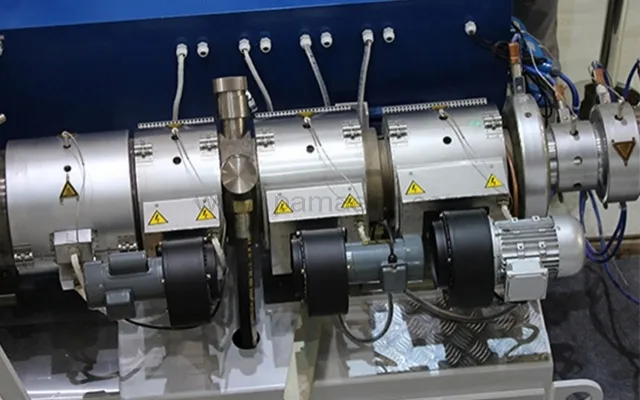

The most prominent application for ceramic bands is in the plastics industry. Extrusion barrels, injection molding machines, and blow molding equipment heavily rely on these heaters to melt raw polymer pellets. When dealing with specialized materials, precise heat is crucial. For instance, in PVC injection molding, maintaining an exact thermal profile prevents material degradation. Ceramic bands provide the steady, radiant heat necessary to keep the melt flow consistent without creating hazardous localized hot spots.
Hot Runner Systems
In advanced injection molding, maintaining the plastic in a molten state right up to the mold cavity is vital. Ceramic band heaters are frequently integrated into hot runner manifolds and larger nozzle assemblies. Their high watt density and excellent insulation properties ensure that the plastic does not prematurely freeze off in the runner system, thereby reducing cycle times and minimizing material waste during complex part manufacturing.
Beyond plastics, ceramic bands are extensively utilized in chemical processing plants where reactors and fluid transfer pipes require elevated temperatures to facilitate chemical reactions or maintain fluid viscosity. They are also widely used in large-scale packaging equipment, rubber vulcanization processes, and commercial food production.
Furthermore, they play a critical role in drum and barrel heating applications, where they prevent materials like heavy oils, resins, or syrups from freezing during winter months, ensuring smooth material flow year-round.
Why are they the preferred choice in these extreme environments? The answer lies in their durability. Environments involving constant vibration, thermal cycling, and potential polymer spillover require a heater that won't easily short out or fracture. The interlocking ceramic bricks flex with the expansion of the metal barrel, while the outer stainless sheath protects against mechanical impacts, ensuring a long, reliable service life even under the harshest operational conditions.
Comparative Alternatives (What Else Could You Use?)
While ceramic band heaters offer exceptional performance for high-temperature and energy-efficient applications, they are not the only thermal solution available. Selecting the right heater requires balancing maximum temperature limits, heat transfer methods, physical durability, and overall project budget. Understanding the strengths and limitations of comparative alternatives ensures you apply the correct technology to your specific process.
According to technical documentation from BriskHeat and other thermal engineering sources, mica band heaters are the most common alternative. Mica heaters are economical and offer a slim profile, making them excellent for tight spaces. However, they are strictly limited to lower maximum temperatures (typically around 900°F or 480°C) and rely entirely on tight physical clamping for conductive heat transfer. If a mica heater becomes loose, it will quickly overheat and fail. In contrast, ceramic heaters can reach up to 1400°F (760°C) and utilize radiant heat, which makes them far more forgiving of slight surface irregularities or clamping variations.
| Heater Type | Max Temperature | Heat Transfer Style | Durability & Cost | Best-Fit Scenario |
| Ceramic Band | 1400°F (760°C) | Conduction & Radiation | High durability, Medium-High cost | High-temp plastics, energy-saving applications |
| Mica Band | 900°F (480°C) | Strictly Conduction | Moderate durability, Low cost | Standard molding, tight clearance spaces |
| Mineral Insulated (MI) | 1400°F+ (760°C+) | High-efficiency Conduction | Very High durability, High cost | High watt-density needs, severe environments |
| Cast-In (Aluminum/Brass) | 750°F / 1200°F | Conduction | Extreme durability, Very High cost | Applications requiring integrated liquid cooling |
| Cartridge / Coil | 1500°F+ (815°C+) | Internal Conduction / Radiant | High durability, Varies | Localized mold heating, nozzles |
For localized heating, such as at the very tip of an injection nozzle, a specialized coil heater or embedded cartridge heater is often more appropriate than a bulky band heater. Furthermore, regardless of the heater type chosen, performance is heavily dictated by the control system. Utilizing an advanced hot runner temperature controller ensures that power is delivered precisely, preventing overshoot and extending the operational lifespan of both ceramic and alternative heaters alike.
How-To: Select, Install, and Run Ceramic Band Heaters

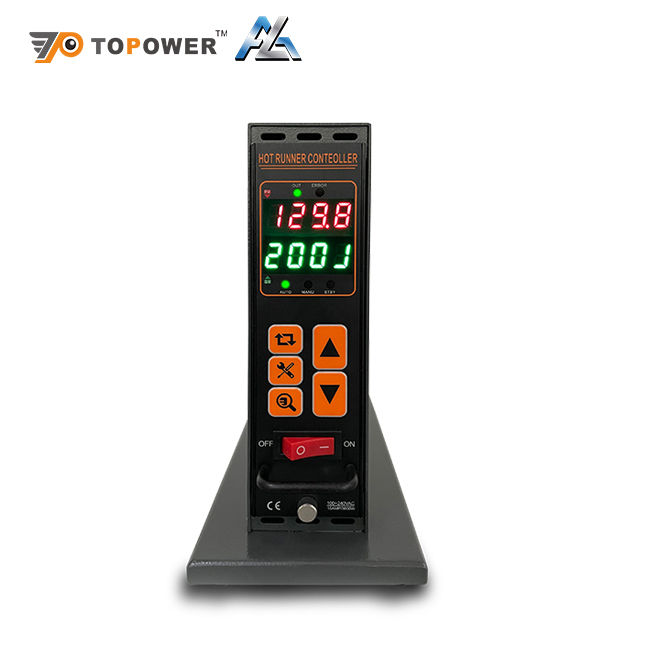

Modern temperature control modules used to regulate industrial heating bands
Deploying a ceramic band heater correctly is a multi-step process that requires careful attention to specification, physical mounting, and electrical integration. A poorly sized or improperly installed heater will not only perform inefficiently but can pose serious safety hazards and suffer from premature burnout.
Step 1: Specification and Selection
The selection process begins with taking precise physical measurements. You must determine the exact outside diameter (OD) of your cylinder and the available width for the heater. Next, calculate the required wattage and watt density based on the material throughput and target temperature. Be sure to specify the correct operating voltage and identify the number of heating zones required. Finally, select the appropriate termination style—such as screw terminals, lead wires, or armored cables—and decide on the placement for the thermocouple sensor. A properly placed sensor ensures your controller receives accurate feedback.

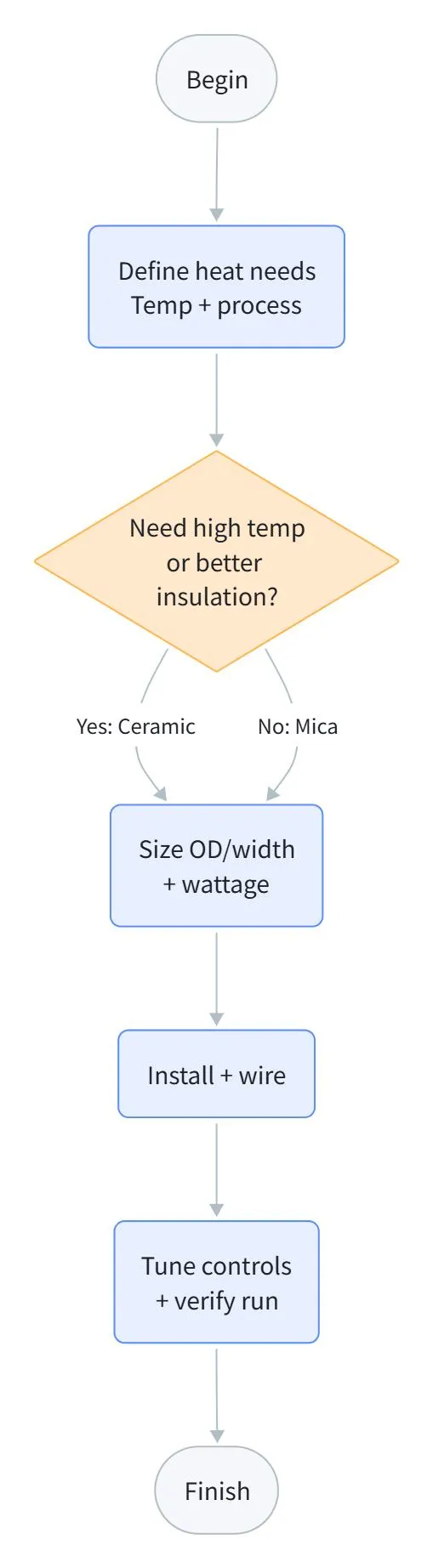

This content is only supported in a AnyGen Docs
Step 2: Installation Best Practices
Installation requires strict adherence to mechanical and electrical safety protocols. Because ceramic heaters utilize radiant heat transfer, they do not require the extreme, crushing clamping force necessary for mica heaters. However, they must still be fitted snugly to prevent shifting. Use the built-in locking mechanisms (such as flange or trunnion clamps) to secure the heater, ensuring there are no large air gaps that could create localized hot spots. Always verify that electrical wiring is routed away from high-heat zones and safely terminated inside approved protective covers to prevent accidental shocks or short circuits.
Step 3: Troubleshooting Common Issues
Even with perfect installation, operational anomalies can occur. If you notice uneven heating across the barrel, inspect the heater for physical damage to the internal ceramic bricks or check if the clamping mechanism has vibrated loose. Frequent heater burnout is usually a symptom of excessive watt density, poor thermocouple placement leading to controller overdrive, or polymer contamination seeping into the heater housing. If your system is failing to reach the setpoint or exhibiting wild temperature swings, the issue frequently lies with the sensor loop. For comprehensive diagnostic steps regarding control anomalies, consult a detailed troubleshooting guide to systematically isolate sensor, wiring, and controller faults.
Market Size, Typical Users, and Competitor Landscape
The industrial heating sector is a robust and steadily expanding global market, driven largely by continuous growth in the packaging, automotive, and consumer plastics industries. While ceramic band heaters form a specialized niche, they are an integral component of the broader industrial band heaters market. According to comprehensive industry reports from Valuates, the global industrial band heaters market was valued at a substantial US$ 421 million in the year 2023. As manufacturing processes become increasingly sophisticated and demand higher energy efficiency, this market is projected to reach US$ 532.3 million by 2030, representing a steady Compound Annual Growth Rate (CAGR) of 3.5% throughout the forecast period.
Market Snapshot: Industrial Band Heaters
| Metric | Value / Forecast |
| 2023 Global Valuation | US$ 421 Million |
| 2030 Projected Valuation | US$ 532.3 Million |
| Expected CAGR (2024-2030) | 3.5% |
| Primary Growth Drivers | Energy efficiency mandates, plastics manufacturing expansion |
The competitive landscape for these essential thermal devices features several highly established, legacy engineering firms alongside specialized regional manufacturers. Major industry players include Tempco, known for highly customizable, energy-efficient ceramic designs; OMEGA Engineering, renowned for robust industrial sensing and heating solutions; and Watlow, a global leader in advanced thermal architectures. Other significant competitors pushing the boundaries of durability and performance include Backer Marathon, BriskHeat, and the Omega Heater Company. These manufacturers continuously compete on factors such as rapid lead times, custom engineering capabilities, and overall product lifespan.
The typical users of these specialized heaters form a diverse cross-section of the manufacturing world. The primary demographic consists of plastics processors operating massive extrusion and injection molding facilities. Additionally, OEM machine builders integrate these heaters directly into new equipment designs, while dedicated facility maintenance teams purchase them as vital replacement parts to minimize factory downtime. Hot runner integrators and industrial distributors also represent a massive segment of the buyer base, ensuring that every Product reaches the end-user precisely when critical process heating is required.
Key Trends + Frequently Asked Questions (FAQ)
The industrial heating sector is continuously evolving, driven by stringent energy regulations and the development of high-performance engineered polymers. A major ongoing trend is the relentless push for superior energy efficiency; modern ceramic bands are being designed with thicker, more advanced ceramic fiber insulation to drastically cut heat loss. Additionally, manufacturers are shifting towards modular, multi-zone heating configurations that pair seamlessly with advanced PID controllers and solid-state relays (SSRs). This precise digital integration prevents thermal overshoot and guarantees a highly stable melt. There is also a distinct industry focus on safety, leading to the development of heater housings that maintain significantly cooler outer surface temperatures, protecting factory workers from severe burns.
Frequently Asked Questions
What is the typical service life of a ceramic band heater?
Depending on the operating temperature, vibration levels, and controller stability, a well-maintained ceramic heater can easily last several years, significantly outperforming standard mica heaters in continuous high-heat applications.
Why choose ceramic over mica?
Ceramic is chosen for applications demanding high temperatures (up to 1400°F) and extreme energy efficiency, whereas mica is limited to around 900°F and offers less insulation.
How tight should the fit be upon installation?
It must be secure enough to prevent physical shifting and ensure stable radiant heat transfer, but it does not require the aggressive, crushing torque necessary for conductive mica bands.
Can a ceramic band heater be reused after removal?
Yes. The interlocking ceramic brick design makes the heater highly flexible. Unlike rigid heaters that warp and become unusable, ceramic bands can be opened and reinstalled multiple times for barrel maintenance.
What is a typical watt density?
Most standard units operate between 20 to 45 Watts per square inch, carefully calculated to provide rapid heating without degrading the internal resistance wire.
Does the thick insulation reduce the heater's overall power?
No. The internal resistance coil generates the full rated wattage. The insulation merely directs that heat inward toward the process, preventing wasteful dissipation into the factory air.
What is the typical maximum temperature range?
Standard configurations comfortably handle internal temperatures up to 1400°F (760°C), making them suitable for almost all commercial thermoplastics.
By staying informed on these trends and understanding the foundational answers to common operational questions, maintenance teams can dramatically extend the life of their equipment. Implementing best practices not only ensures heater longevity but is also a critical step in broader factory optimization efforts, such as eliminating cold runner waste and achieving sustainable, high-yield manufacturing.
