What is a Mould Temperature Controller (MTC)?

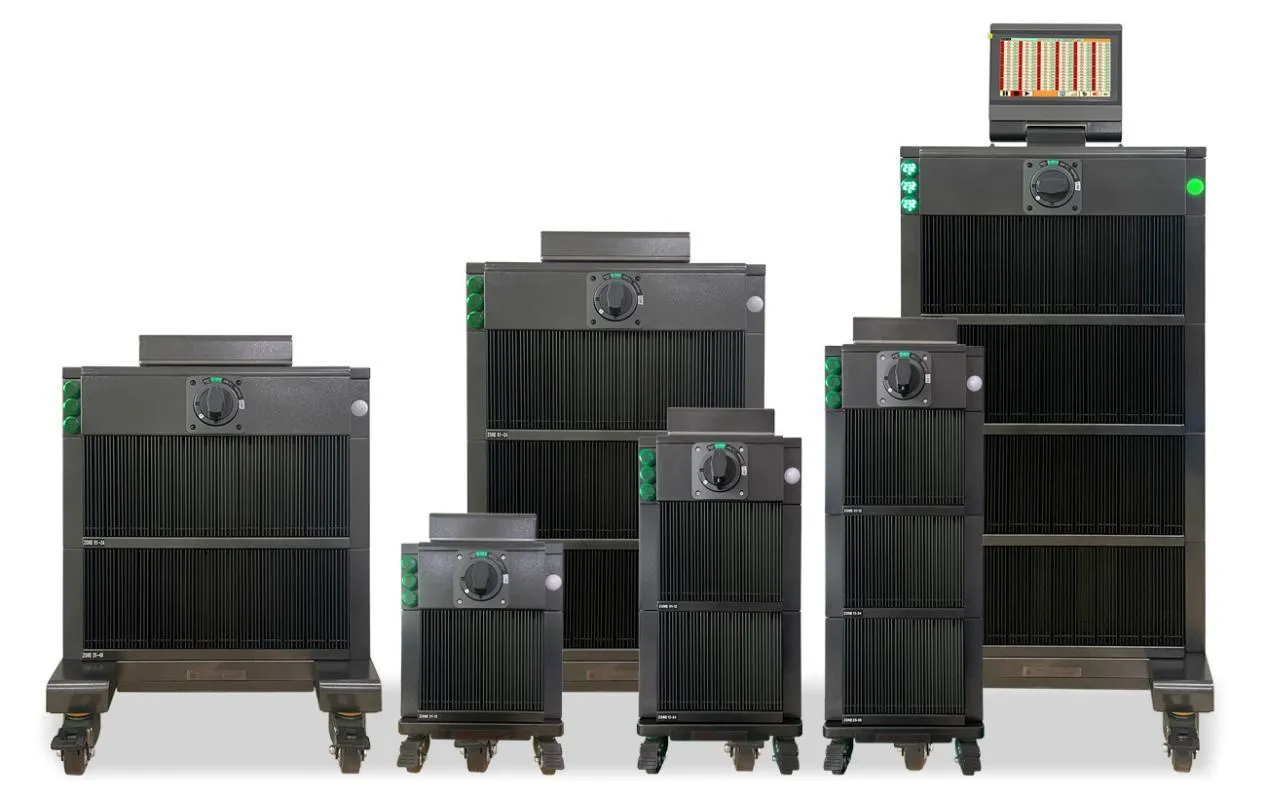

A mould temperature controller (MTC), often referred to as a "Temperature Control Unit (TCU)”, is a specialized industrial device used to regulate the thermal environment of a production process—most commonly in plastic injection molding, blow molding, and extrusion. Unlike a chiller, which is designed primarily to remove heat, a TCU is a versatile system that can both "raise the temperature” of a process using internal electric heaters and "cool it” by exchanging heat with a lower-temperature water source or through a dedicated heat exchanger. This dual capability allows for precise stabilization of the tool steel, ensuring consistent part dimensions and quality.

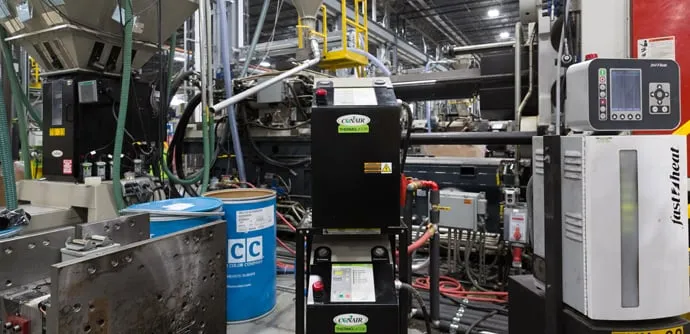

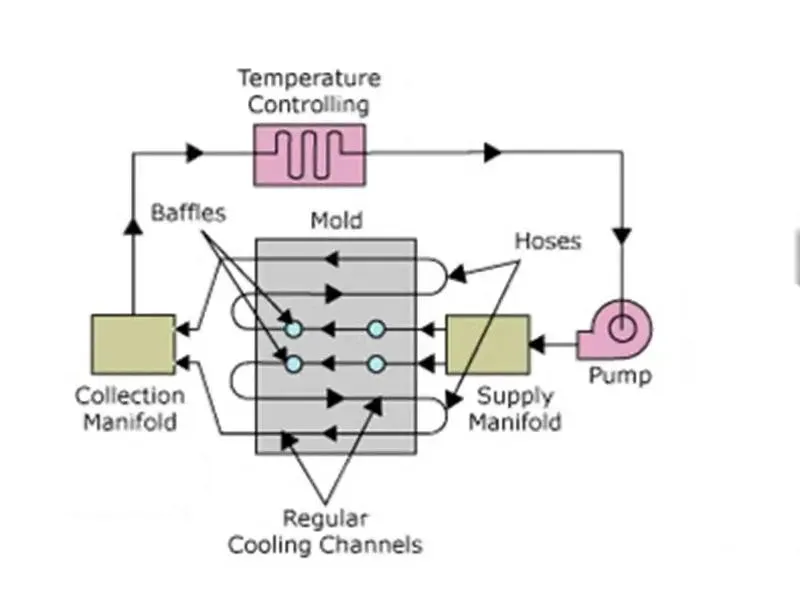

In a typical plastics processing cell, the MTC sits alongside the primary machine, plumbed directly to the mold or tooling. It serves as the "thermal lungs" of the operation, ensuring that the polymer flows correctly into the cavities and solidifies at a rate that maximizes both part quality and cycle efficiency. By maintaining a narrow temperature range, processors can avoid common defects like “warpage”, “sink marks”, and “dimensional instability” that occur when a mold is either too hot or too cold.



MTC Technical Glossary

• MTC / TCU: Terms used interchangeably for Mould Temperature Controllers or Temperature Control Units.

• Setpoint: The target temperature the operator programs into the controller for the process fluid.

• PID (Proportional-Integral-Derivative): A control loop mechanism that calculates the difference between a desired setpoint and a measured process variable to apply accurate correction.

• Delta T (ΔT): The temperature difference between the fluid entering the mold (supply) and the fluid returning from the mold.

• Turbulent vs. Laminar Flow: Turbulent flow is high-velocity, chaotic fluid movement that maximizes heat transfer; laminar flow is smooth and layered, often leading to poor heat exchange.

• Direct Injection: A cooling method where cold water is directly "injected" into the process loop to lower temperature.

• Closed Circuit: A system that uses a heat exchanger to cool process water without mixing it with the plant's central water supply.

Isolated Circuit: Completely separates the process fluid (e.g., oil or glycol) from the cooling water using a shell-and-tube or brazed-plate exchanger.





Where is it Used?

Injection Molding: Heating molds to promote flow and cooling them to solidify parts rapidly.

Blow Molding: Controlling the temperature of the blow pin and mold for uniform wall thickness.

Extrusion: Regulating temperature in sizing tanks and extrusion dies for PVC and engineering plastics.

Die Casting: Maintaining consistent thermal profiles in metal dies to improve surface finish.



How it Works: The Control Loop & Hardware

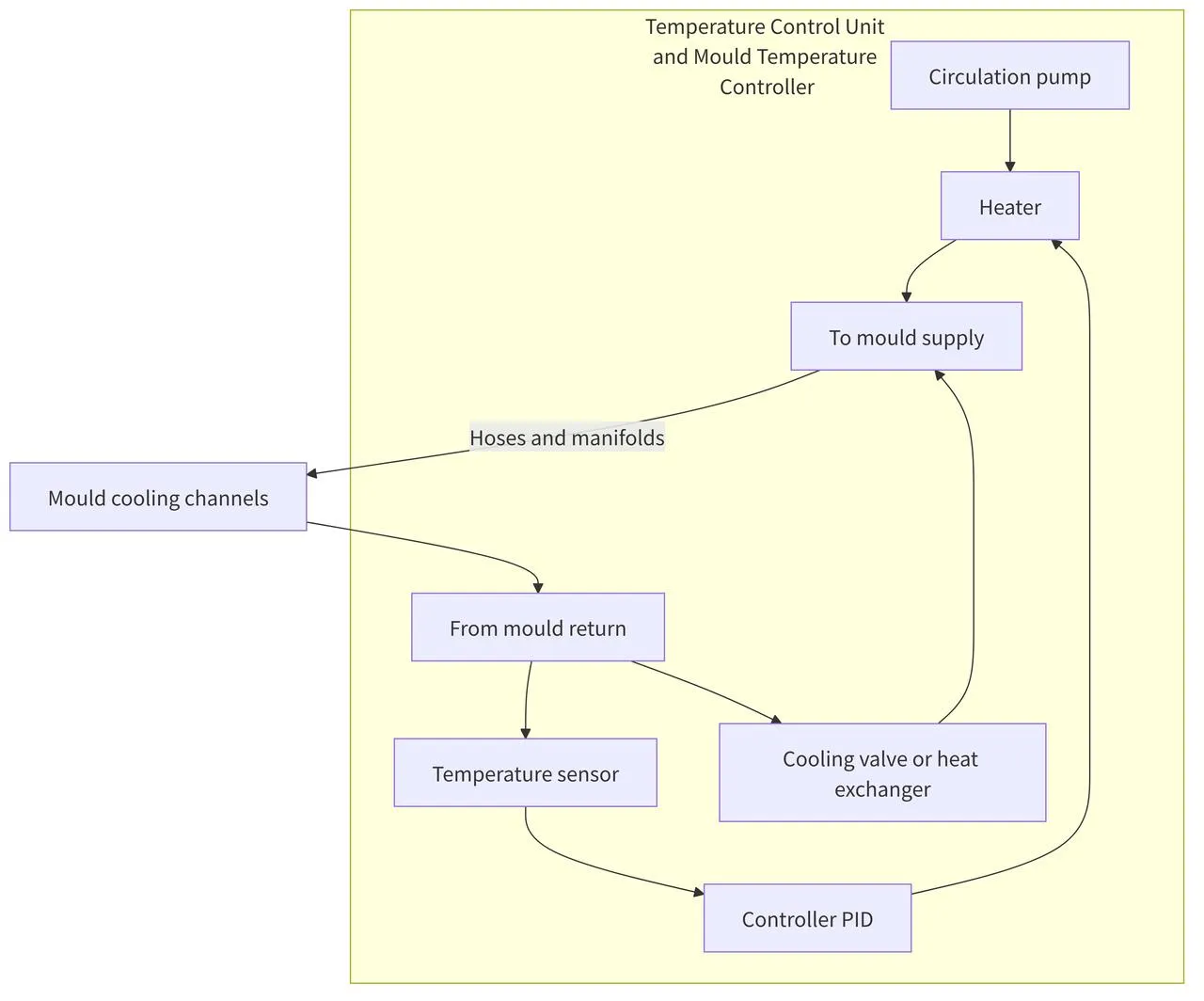

The fundamental operating principle of an MTC is based on a "closed-loop feedback system”. The unit continuously circulates a heat transfer medium (typically water or oil) through the process—such as the cooling channels of a mold—to either add or remove heat as required to maintain the operator's setpoint.

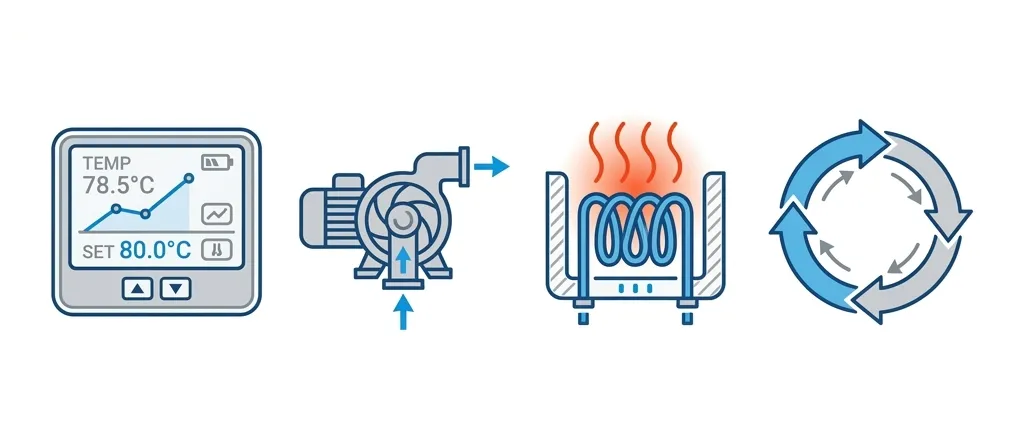

The hardware architecture of a standard TCU consists of several critical blocks:

Circulation Pump: The heart of the unit, responsible for moving the fluid at high enough velocities to achieve turbulent flow, which is essential for efficient heat transfer.

Heater High-density electrical elements that raise the fluid temperature during startup or when the process loses heat.

Cooling Valve / Heat Exchanger: Mechanisms used to remove heat. In direct systems, a valve opens to allow cool plant water in; in indirect systems, a heat exchanger transfers heat out of the closed loop.

Sensors & Controller: A temperature sensor (thermocouple or RTD) provides constant data to a PID-based digital controller which then modulates the heater and cooling valve to stabilize the temperature.



The 4-Step Control Sequence

1. Measure: The temperature sensor detects the fluid temperature returning from the mold.

2. Compare: The PID controller compares the actual temperature to the user-defined setpoint.

3. Adjust: Based on the error (Delta), the controller engages the heater to add heat or opens the cooling valve to remove it.

4. Stabilize: The loop continues at high frequency (up to 10Hz sampling) to maintain precision within +/- 0.1°C.

The choice of heat transfer medium depends heavily on the required temperature range. “Water” is the most common medium for temperatures up to “90°C (194°F)” in open bath systems, while “pressurized water” units can reach “150°C (300°F)”. For high-temperature engineering plastics or die casting, “oil-based TCUs” are utilized, capable of operating from “200°C to 350°C”.

Market Definition	Base Year Value	Forecast Value	CAGR	Source & Notes
Hot Runner Temperature Controllers	$750 M (2022)	$1.0 B (2032)	3.6%	Global Market Insights; Focus on electronics and zones.
Hot Runner Control Systems (Global)	$869.7 M (2025)	$1.35 B (2034)	5.06%	Fortune Business Insights; Includes touchscreen/modular segments.
Industrial Mold Temperature Controllers	$1.2 B (2024)	$2.5 B (2034)	7.5%	Reports and Data; Broadest definition including water/oil MTCs.

Growth in this sector is primarily driven by the "Automotive segment”, which accounted for approximately “$189 Million” of the hot runner controller market in 2022 due to the rising demand for lightweight, high-precision plastic components. Regional leadership is currently held by “North America” (approx. 35% share for industrial MTCs) and the “Asia-Pacific” region (approx. 32-45% share depending on segment), with China alone accounting for 15% of the Asia-Pacific hot runner controller market.



Typical Applications & Why They Care

The application of temperature control extends across nearly every segment of modern manufacturing where plastic or metal is formed under heat. The following matrix illustrates how MTC requirements vary by process:

Application Process	Critical Importance	Typical Requirements
Injection Molding (General)	Cycle time reduction and part surface finish.	Precision +/- 0.5°C, High flow for turbulence.
Thin-Wall Packaging	Prevents premature freezing and short shots.	High ramp rate, pressurized water (120°C+).
Automotive Exterior	Dimensional stability for large parts (bumpers).	Multi-zone control, stable Delta T.
Extrusion (Tanks/Tooling)	Controlled cooling of heavy-walled structures.	Large reservoir volume, moderate temp stability.
Medical Devices	Consistent part mass and sterility validation.	Data logging, cleanroom-ready design.

For engineering plastics like "Nylon” or "Polycarbonate”, MTCs are often used at high temperatures (up to 93°C) not to cool the part in the traditional sense, but to slow down the cooling process. This ensures that the material achieves its proper crystalline structure and dimensional accuracy, preventing internal stresses that lead to long-term part failure.



Comparative Alternatives (What Else Can You Use?)

While an MTC is the standard for flexible temperature management, other technologies are used depending on the specific thermal goal and process complexity.

Alternative	What it Controls	Best Use Case	Pros / Cons
Chiller-Only Cooling	Heat removal only.	Commodity plastics (Polyolefins) at 10-25°C.	Low cost / No heating capability, risk of mold sweating.
Electric Cartridge Heaters	Local mold steel temp.	Simple molds requiring steady heat.	Precise local heat / Slow response, no cooling capability.
Hot Runner Controller	Plastic melt path temperature.	Multi-cavity molds with hot runners.	High precision (+/- 0.1°C) / Does not control mold cooling.

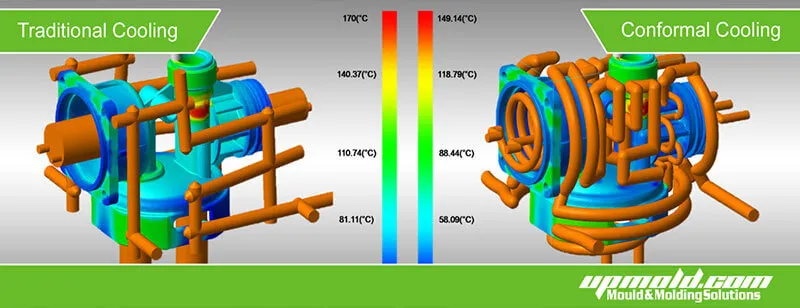

Conformal Cooling	Optimal heat extraction.	Complex geometries, automotive, packaging.	Fastest cycles, uniform cooling / High mold cost (3D printed).





Decision Tip: MTC vs. Hot Runner Controller

Don't confuse the two! A “Hot Runner Controller” regulates the heaters "inside” the mold to keep plastic molten. An “MTC”circulates fluid through the “mold base”to control the solidification of the final part. High-performance molds usually require “both”systems to operate in tandem. For the hot runner side, specialized coil heaters are typically used to maintain precise nozzle temperatures.



Typical Users & Buying Roles

The procurement of temperature control equipment typically involves a cross-functional team within a manufacturing plant.

Process Engineers

Concerned with stability and precision. They specify the PID performance and flow requirements to meet quality targets.

Maintenance Managers

Look for durability and serviceability. They prioritize easy access to pumps, cleanable strainers, and common spare parts.

Plant Managers

Focus on ROI and energy efficiency. They evaluate how the MTC reduces cycle time and scrap rates across the floor.

Procurement Checklist

Category	Must-Have Specification
Performance	Temperature range, Pump pressure/flow curve, Heater kW rating.
Utilities	Voltage (240V/480V), Water inlet size, Hose coupling types.
Safety	Low-water pressure alarm, Emergency stop, Over-temp cutout.
Smart Factory	Industry 4.0 connectivity (OPC UA), Data logging, PLC integration.



Competitor Landscape

The market is populated by both broad-line auxiliary equipment manufacturers and specialized thermal technology companies. Representative global players include:



Segment A: Industrial MTCs & TCUs

Conair (Thermolator®): A dominant North American brand known for its compact, reliable water and oil TCUs.

Wittmann Group: Provides high-integration MTCs that often communicate directly with Wittmann injection molding machines.

Regloplas: Specialized in high-performance Swiss engineering for pressurized water and high-temp oil units.

HB-Therm: Recognized for its "Thermo-5" line, emphasizing energy efficiency and tankless operation.



Segment B: Hot Runner Temperature Controllers

Husky Technologies: Market leader in high-cavitation hot runner systems and control electronics (18% share).

Mold-Masters (Hilenbrand): A key global player with a focus on advanced multi-zone precision control (16% share).

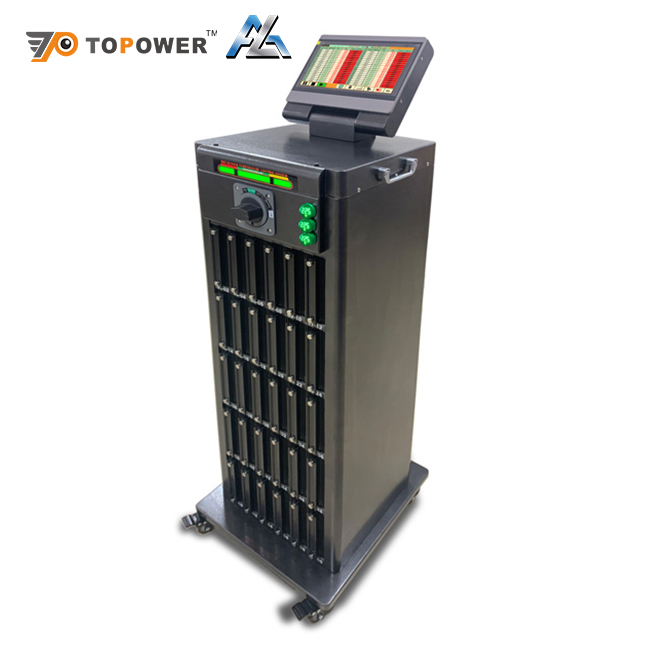

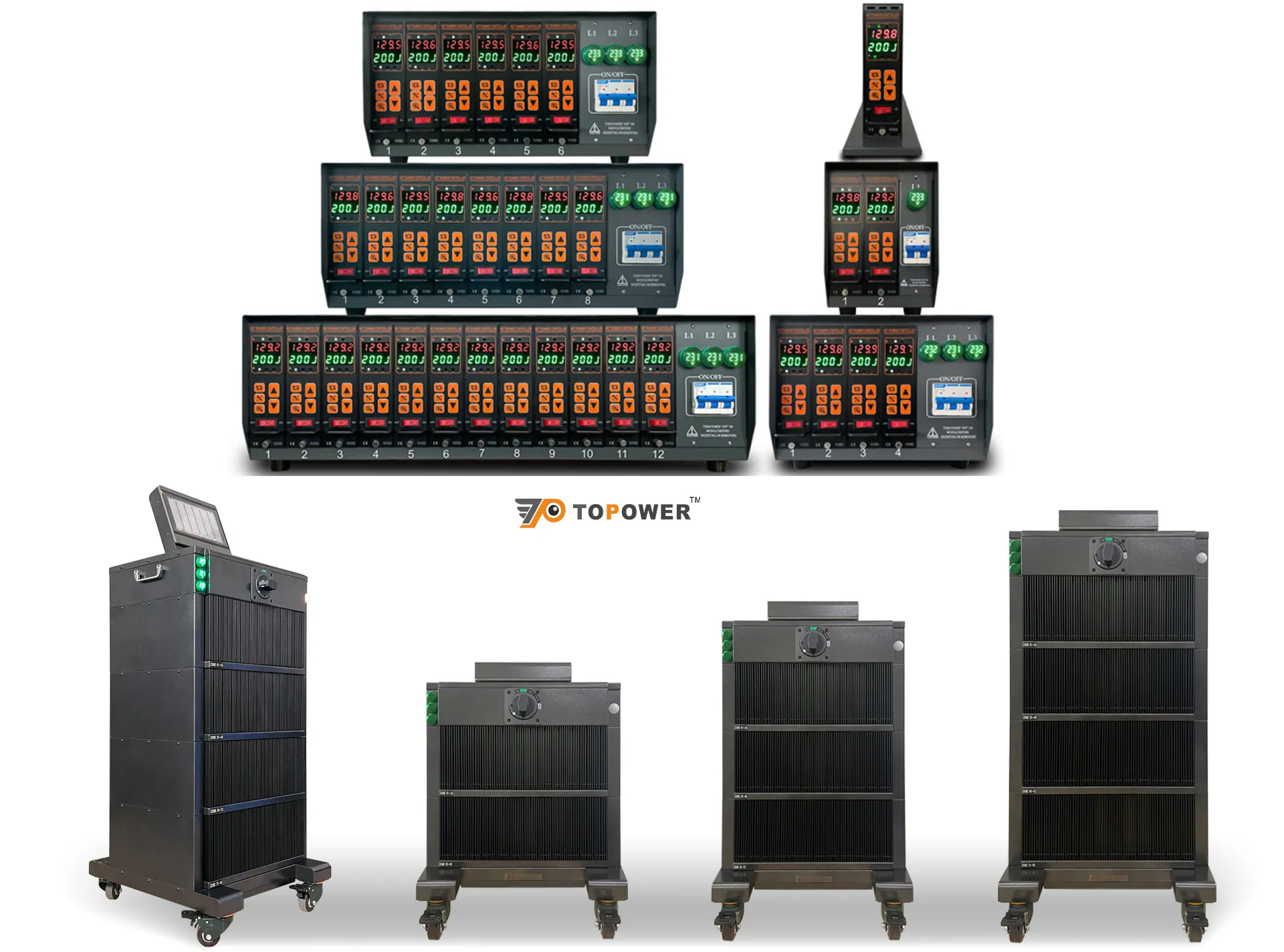

TOPOWER (CNTopower): Specializes in touchscreen multi-zone controllers with high zone density (up to 120 zones) and modular hot runner control modules for 1–16 zones.

Key Trends (2023–2026+) in Temperature Control

The industry is moving toward "Smart Thermal Management," where the MTC is no longer a standalone box but an integrated node in a factory-wide network.

Industry 4.0 & Connectivity

Nearly 35% to 40% of new installations now feature IoT-enabled sensors for remote monitoring and predictive maintenance, reducing unplanned downtime.

Energy Efficiency

Advanced power regulation and high-efficiency pumps can reduce energy consumption by up to 15%, a critical factor for large molding shops.

Trend	Process Impact
Touchscreen HMI Adoption	Found in 45-50% of new units; improves operational efficiency by 25% via faster setup.
Variothermal Molding	Rapid heat/cool cycles eliminate weld lines and improve surface gloss for high-end parts.
Water Quality Management	Built-in filtration and monitoring to prevent scale and corrosion in mold channels.
Process Window Tightening	Advanced algorithms allow for +/- 0.1°C stability, required for sensitive medical polymers.



How-To: Select & Size a MTC/TCU

Sizing an MTC correctly is the difference between a stable process and one that constantly triggers alarms. Follow this structured selection workflow:

Step-by-Step Selection Checklist

Define the Medium: Choose water for < 90°C, pressurized water for < 150°C, or oil for > 150°C applications.

Estimate Heat Load: Calculate the Resin Load (heat to be removed from the plastic) plus the Pump Heat. If using hot runners, add 0.15 tons of cooling per kW of hot runner heat.

Size the Pump: Ensure the pump can provide enough flow to achieve a Reynolds Number between 4000 and 8000 for turbulent flow in your mold channels.

Size the Heater: Based on the mold mass and material (e.g., P20 steel), calculate the kW needed to reach operating temperature within your desired startup time.

Select the Circuit Type: Choose between Direct, Closed, or Isolated based on your water quality and process needs.



Comparison of Fluid Circuit Types

Circuit Type	Max Temp	How it Cools	Best For
Direct Injection	121°C (250°F)	Injects cool plant water directly into the process loop.	Simple, cost-effective setups with clean plant water.
Closed Circuit	148°C (300°F)	Uses a heat exchanger (plate/shell) to cool the loop.	Critical cooling apps; tolerates contaminated plant water.
Isolated Circuit	82°C (180°F)	Completely separates process and cooling fluids.	Using glycol or oil as process fluid; atmospheric cooling.



Installation, Commissioning & Troubleshooting

Successful implementation of an MTC requires more than just "plug and play." Proper commissioning ensures long-term reliability.



Commissioning Best Practices

Purge Air: Ensure the system is fully bled of air before engaging heaters to prevent dry-firing damage.

Hose Routing: Use large-diameter, insulated hoses with minimal couplings to reduce pressure loss and maintain turbulent flow.

Water Quality: Use treated water to avoid scale buildup, which acts as an insulator and kills heat transfer efficiency. Inspect strainers/filters weekly.

Auto-Tune: Always run the PID auto-tune feature during the first mold trial to match the controller's response to the mold's thermal mass.



Maintenance Schedule

Interval	Action Item	Purpose
Daily	Check for hose leaks and monitor Delta T stability.	Early detection of flow issues.
Weekly	Inspect and clean water inlet strainers.	Prevent pump cavitation and flow loss.
Monthly	Verify pump motor current and inspect electrical connections.	Avoid short circuits and overcurrent.
Quarterly	Calibrate temperature sensors and check heat exchanger fouling.	Maintain precision and cooling capacity.



Frequently Asked Questions (FAQ)

1. Should I choose water or oil as my transfer medium?

Choose "water" whenever possible for temperatures below 150°C; it has superior heat transfer properties. Choose "oil" only if you need to operate above 150°C or if you are molding water-sensitive metal dies.

2. When do I need a pressurized water TCU?

You need pressurized water when your setpoint is above 90°C (the boiling point of water). Pressure keeps the water in a liquid state, allowing it to reach up to 150°C without flashing to steam.

3. Why does turbulent flow matter so much?

In laminar flow, the outer layers of fluid insulate the core. Only "turbulent flow" breaks these layers, bringing all the fluid into contact with the cooling channel walls for maximum heat exchange.

4. What is the difference between an MTC and a chiller?

A **chiller** uses refrigeration to create cold water. An "MTC" takes that cold water (or uses its own heaters) to regulate a specific temperature loop for a single process or mold.

5. Why is my mold temperature unstable?

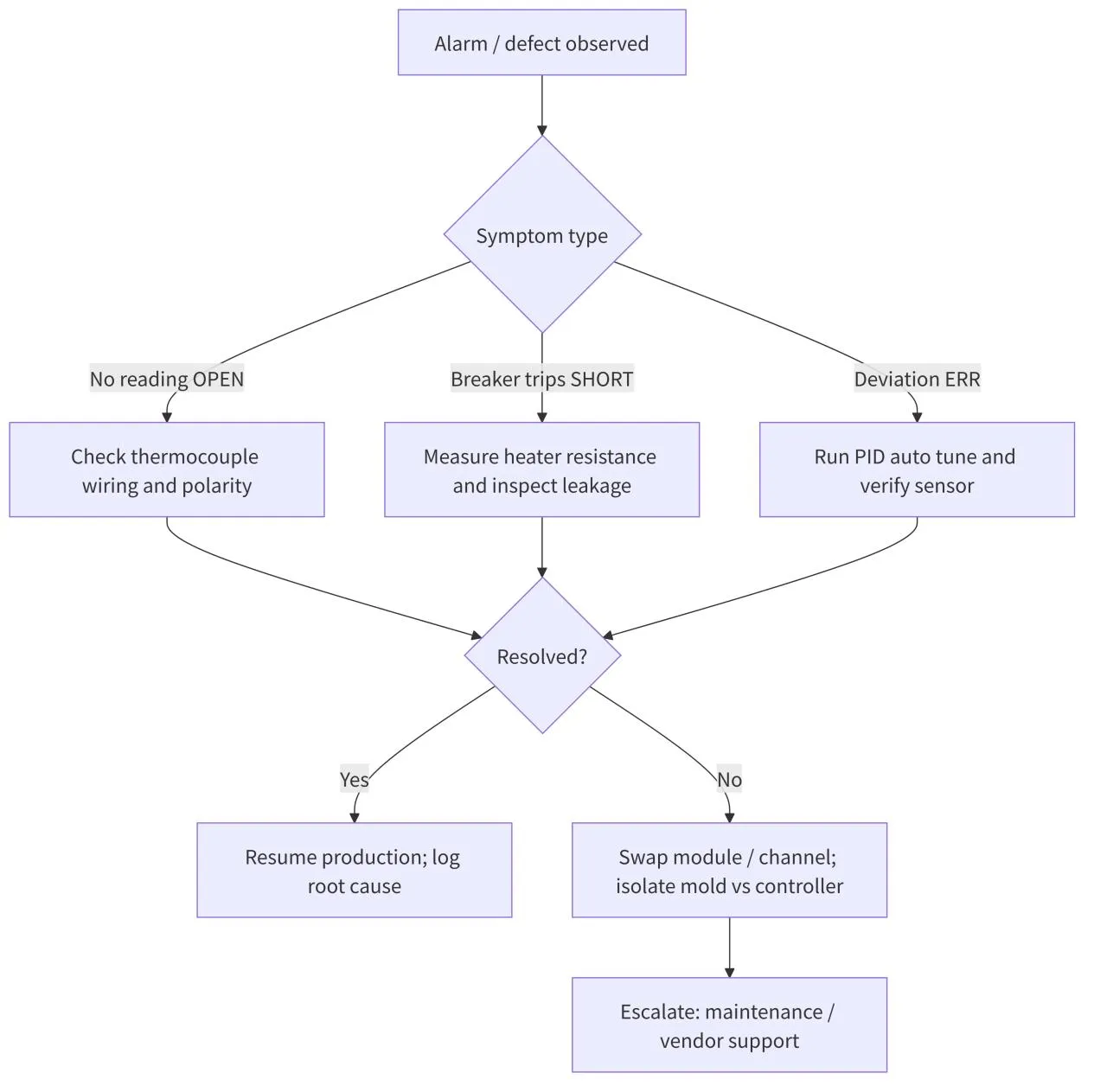

Common causes include poorly tuned PID parameters, air trapped in the lines, scale buildup in the mold, or an undersized pump that can't overcome the mold's pressure drop.

6. Can an MTC help reduce my cycle time?

Yes. By maintaining the optimal Delta T and ensuring turbulent flow, an MTC removes heat from the plastic faster than static or laminar cooling, allowing for quicker part ejection.

7. How do I avoid scale and corrosion?

Use treated process water (filtered and softened). Some MTCs also feature specialized "waterCare" modules to monitor and treat water chemistry automatically.

8. What are the main considerations?

Always ensure proper electrical grounding, check for hose wear regularly, and never override low-pressure or high-temperature alarms as they protect the unit from catastrophic failure. For high-precision molding projects requiring integrated thermal solutions, practitioners often pair their MTCs with modular hot runner control modules or high-density touchscreen multi-zone controllers to manage the entire thermal profile of the tool from melt to solidification. For more details on compatible hardware, consult the CNTOPOWER product catalog.
