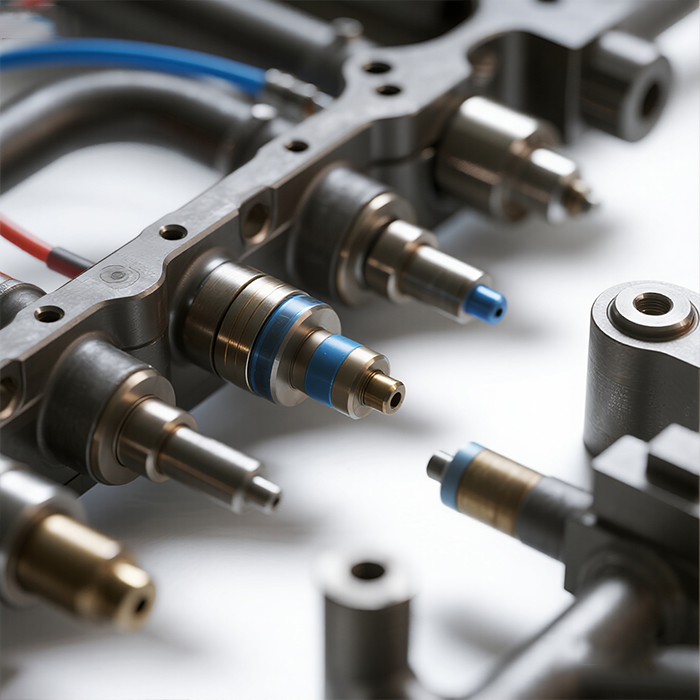

Material Selection for Hot Runner Nozzles and Manifolds in Automotive Applications

When it comes to automotive injection molding — including under-hood parts, structural brackets, interior trim, and high-precision connectors — the choice of materials for hot runner nozzles and manifolds directly affects cycle time, part quality, and tool life. This guide explains which materials work best for common automotive resins (PA6/PA66 GF, PPA, PPO, PET) and provides practical pairings with TOPOWER  products, enabling your team to spec molds that run longer, cleaner, and more efficiently.

Why material choice matters

Hot runner components live in a harsh environment: high temperature, pressure, abrasive glass fibers, and occasionally corrosive additives. The right material balances thermal conductivity, wear resistance, corrosion resistance, and manufacturability. Pick the wrong alloy and you’ll face uneven filling, premature wear, tip leakage, or frequent downtime.

Common nozzle & manifold materials — quick guide

• H13 / tool steels — Widely used for manifold bodies and many nozzle bodies due to toughness and wear resistance; good for general automotive applications.

• Stainless steels (420/420HC, 17-4PH) — Used where corrosion resistance matters; common for manifolds that see moisture or corrosive polymer byproducts.

• Beryllium copper (BeCu) — Gold standard for nozzle tips and insert zones where high thermal conductivity and fast heat transfer are needed (e.g., PET preforms, thinwall parts).

• CrZr or other copper alloys — Alternatives to BeCu with improved mechanical properties or lower Be content.

• Tungsten carbide / hard liners — Employed for severe abrasion (glass-filled, mineral-filled resins) at gate or seat interfaces.

• Nickel or highnickel alloys (Inconel) — Used for corrosion resistance and very high temperature stability in aggressive resins or special processes.

Material tradeoffs and where they apply

Thermal conductivity vs wear: Copper alloys (BeCu, Cr-Zr) conduct heat quickly — ideal for nozzle tips and thin wall fill — but they’re softer than hardened steels. Hardened steels (H13, D2) resist abrasion from glass-filled compounds but have lower thermal conductivity, which can slow tip response and risk partial freeze-off in delicate gates.

Corrosion resistance: Certain flame-retardant or halogenated compounds can produce corrosive byproducts. Stainless steels and nickel alloys help manifolds survive longer in such environments, reducing pitting and leakage risk.

Cost & safety: Beryllium copper remains widely used because of performance, but remember it requires careful handling during machining and repair due to beryllium’s toxicity in dust form. Many manufacturers now specify Cr-Zr copper alloys or plated tips to balance safety and conductivity.

Pairing materials with common automotive resins

Glass-filled PA6/PA66 (common for structural under-hood parts): Use hardened steel or steel bodies with carbide or hardened gate inserts. Glass fiber abrasion will wear soft copper quickly at gates, so protect contact surfaces with carbide or hardened steel tips.

PPA, PA66 GF (high-temp engineering plastics): Nozzle tips often use BeCu or CrZr to improve thermal response, but the nozzle bodies and manifolds should be H13 or stainless to withstand higher molding temperatures and mechanical stress.

PET (bottle & some connector applications): PET benefits heavily from high thermal conductivity at the tip — BeCu or highconductivity coated tips shorten cycle time and reduce degradation. Consider ceramic coatings or plated tips to improve release and reduce carbonization.

Coatings and surface treatments that extend life

• Nickel plating / hard chrome: Improve corrosion resistance and reduce adhesion.

• TiN / ceramic coatings: Reduce wear and prevent polymer buildup at critical zones.

• Nitriding/surface hardening: Increase surface hardness of steel manifolds and nozzles to resist abrasion.

Coatings are especially useful when you need the thermal performance of a copper tip but the wear resistance of steel.

Design and maintenance tips (practical)

Modular tips and replaceable gate inserts: Design nozzles with replaceable tips (BeCu or carbide inserts). When the tip wears, replace it rather than the whole nozzle.

Use thermal breaks and insulation where needed: Combine conductive tips with insulated nozzle bodies to control heat flow and prevent unwanted thermal gradients.

Specify the right controller pairing: Accurate temperature control mitigates thermal degradation. TOPOWER  HY20 touch screen and TP01 modular controllers offer multi-zone precision and data logging — essential when running PPA or high glass compounds. Use multi-zone control to tune manifold and nozzle zones independently for best results.

Plan for abrasive resins: For glass-filled automotive compounds, specify hardened or carbide gate seats and consider staggered maintenance intervals.

Clean carefully: Heat the system before cleaning to soften residues; avoid sharp tools that scratch channels. Follow safe solvent practices and manufacturer cleaning guidance.

How TOPOWER products fit into the material strategy

Temperature precision: TOPOWER ’s HY20 series touch screen controllers provide fine PID control and multi-zone support — this lets you run copper tips without overheating them and adjust zones for optimal melt quality.
Modular flexibility: TP01 modular controllers scale from 1–16 zones, ideal for pairing with multi-cavity automotive molds where some nozzles require different tuning than others.
Maintenance and serviceability: TOPOWER  documentation and support resources emphasize modular nozzle designs and recommended cleaning/repair workflows — making it easier to maintain BeCu tips, replace inserts, and minimize downtime.

(If you run high-abrasion glass-filled parts, combine TOPOWER temperature control with hardened gate inserts and tungsten carbide tip options to get both thermal control and wear resistance.)

Quick spec checklist for automotive hot runner builds

Manifold body: H13 or stainless 420/17 4PH if corrosion risk exists.
Nozzle body: H13 or stainless for wear and strength.
Nozzle tip / insert: BeCu or Cr Zr Cu for best thermal response; carbide for abrasive resins.
Surface treatment: Nickel plating, TiN, or nitriding for high wear environments.
Controller: TOPOWER  HY20 for high zone accuracy or TP01 modular series for flexible scaling.

Example: spec for PPA GF under hood bracket mold

Manifold: H13 with nickel plating on interior channels (resistant to additives).

Nozzle: H13 body with BeCu tip, TiN-coated gate surface.

Gate insert: Tungsten carbide for glass abrasion protection.

Controller: TOPOWER HY20, multi-zone PID with auto-tuning and data logging.

Final recommendations

Material selection is never one size fits all. Start by matching the resin, cavity count, and target cycle time to a material strategy that balances thermal performance and wear resistance. For automotive customers, I recommend:

Prototype copper-tipped nozzles for thin-wall and high-throughput parts to prove cycle and quality.

Move to hardened inserts or carbide once abrasive wear is demonstrated.

Pair hardware with tight temperature control — TOPOWER controllers will help you tune zones, log data, and maintain stable melt conditions over long production runs.

If you’d like, TOPOWER can produce a tailored spec sheet for your part: give us the resin, cavity count, and cycle time target, and we’ll suggest a nozzle/manifold material combination plus the exact controller model (TP01 or HY20) best suited to the job.
